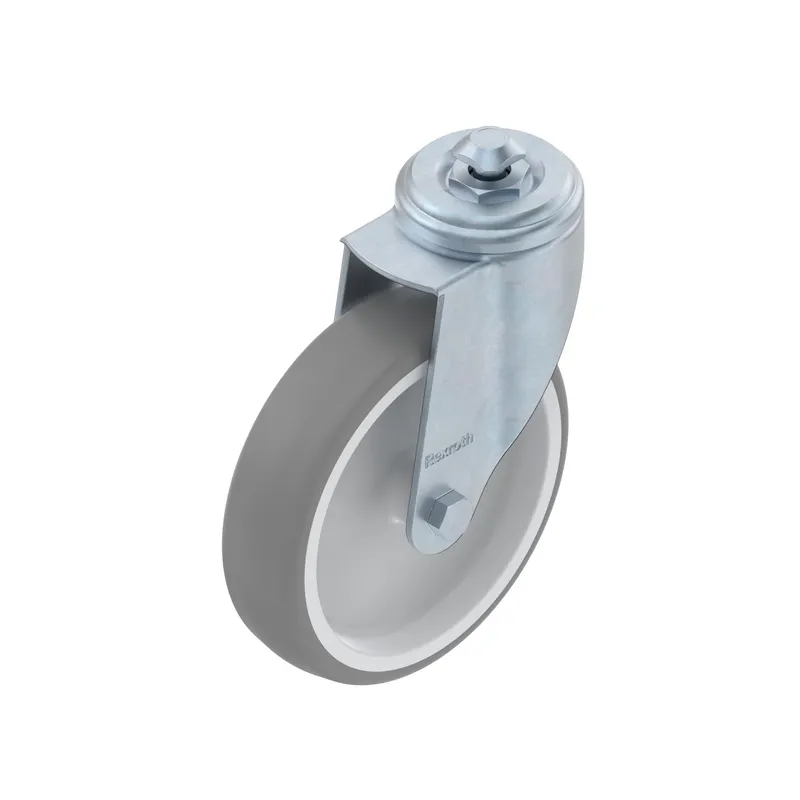

CASTER WHEEL D125
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Roller, gentle on floors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842541236 be shipped?
3842541236 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842541236 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842541236 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842541236, subject to availability and destination.
LR, rubber, F1100 Especially gentle on floors Suitable for ESD-sensitive areas. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance ≤ 10<sup>6</sup> Ω Versatile range of uses Wheels with excellent running properties Mounting of the roller in the profile slot or central hole (accessories required) Profile finishing: thread cutting M12 in the case of assembly in central hole

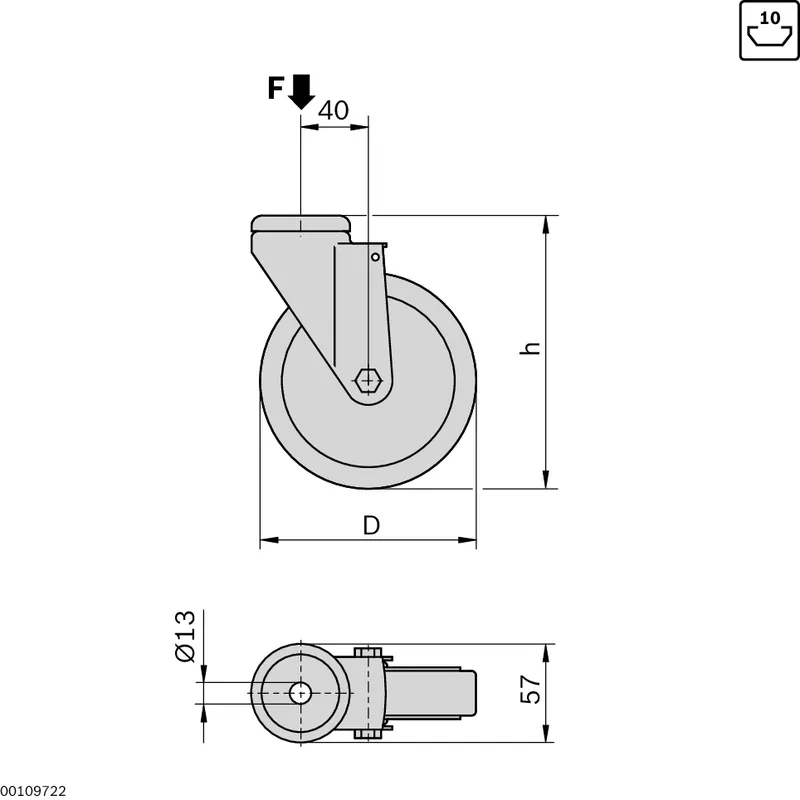

Specifications
Specifications
| Profile slot | 10 |
| Diameter D [mm] | 125.0 |
| Dimension [h] [mm] | 158.0 |
| Packaging unit | 1 |
| Total height [mm] | 158.0 |
| Force F [N] | 1100.0 |
| Material | Thermoplastic rubber |
| Fastening material | 1x hexagon nut DIN985 M12; 1x square screw M12x30 |

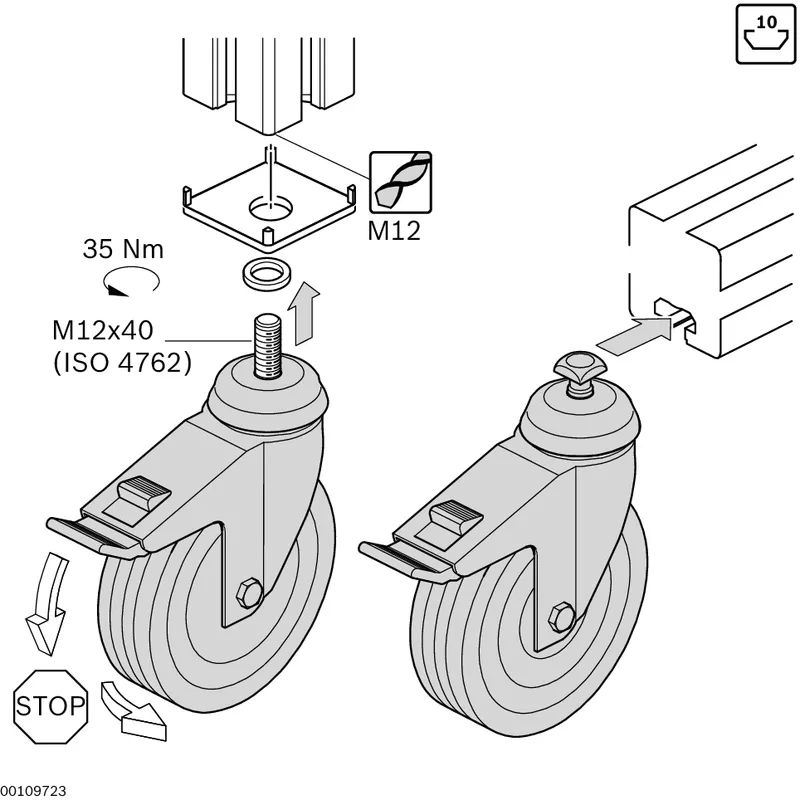

| Required accessories | Bearing ring if cover cap with hole is used; Screw M12x40 (ISO 4762) for fastening to the profile core (↻ 35 Nm) |
| Weight [kg] | 0.8 |
