SUPPORT ARM JOINT 45X90 SILVER
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Supporting arm joint |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842538695 be shipped?
3842538695 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842538695 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842538695 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842538695, subject to availability and destination.

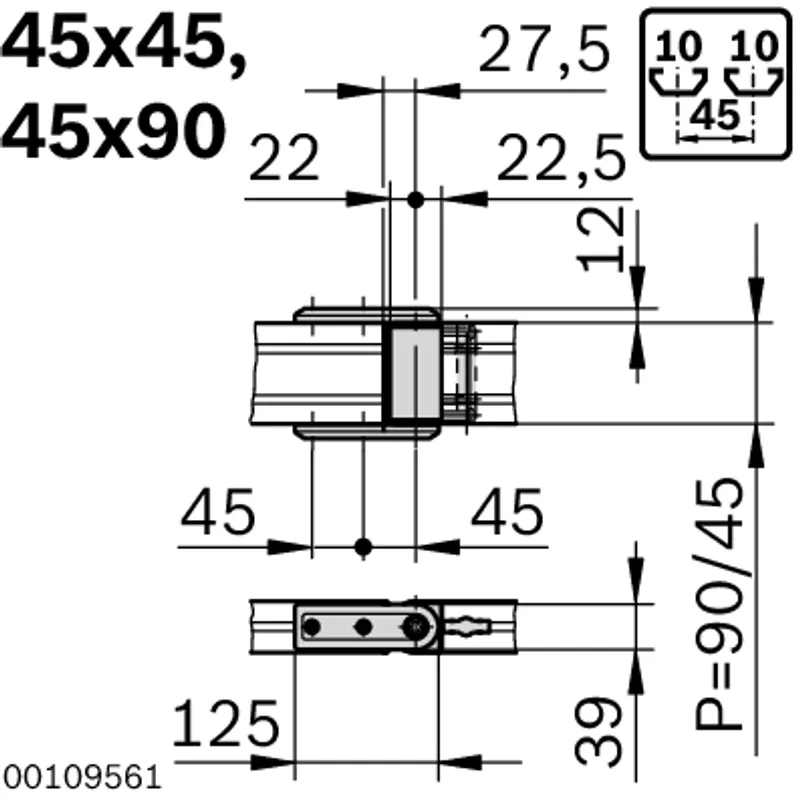

Supporting arm joint 45x90 <i>designLINE</i> Suitable for swiveling end connections, e.g. for the construction of supporting arms Version <i>designLINE </i>with special silver paint (RAL 9006) for an especially high-quality design Profile finishing: drilling of through-hole D17
Specifications
Specifications
| Modular dimension [mm] | 45 |
| Profile slot | 10 |
| ESD | Yes |
| Dimensions | 45x90 |
| Color | White aluminum (RAL 9006) |
| designLINE | Yes |
| Dimension [p] [mm] | 90 |
| Packaging unit | 1 |
| Bending moment 1 [Nm] | 150.0 |
| Scope of delivery | Incl. cover caps, bolt connectors, fastening material (FS) |
| Material information | Cover cap: PA, black; Fastening material: Steel, galvanized; designLINE supporting arm joint: Diecast zinc, painted |
| Material | Diecast zinc, painted |
| Weight [kg] | 0.89 |
