SECTION PROFILE SP2/B 16X6070MM
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Components of belt and toothed belt conveyor units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842532695 be shipped?
3842532695 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842532695 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842532695 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842532695, subject to availability and destination.

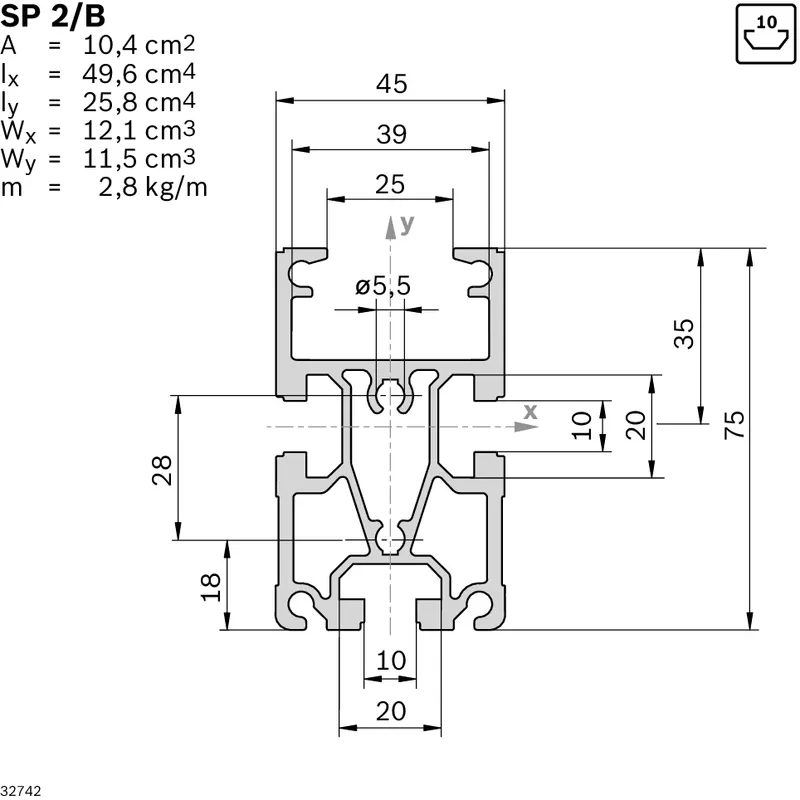

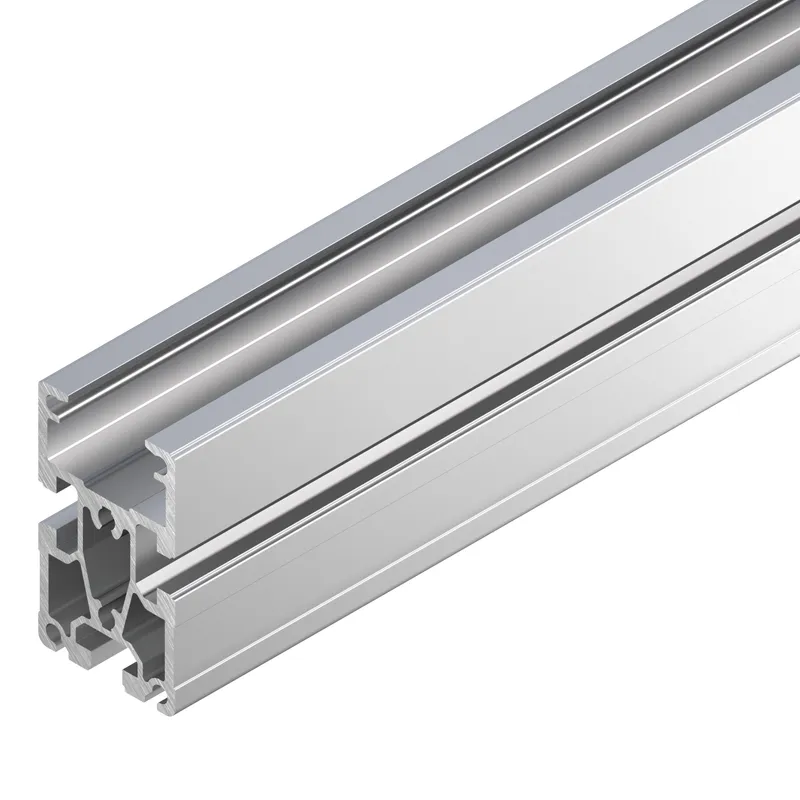

Section profile SP 2/B 16x6070mm Used for self-construction of low-profile conveyor units and the conveyor medium belt For use in conjunction with all AS 2/B-... drive modules, UM 2/B return units and FP 2/B guide profiles Longitudinal grooves for easy mounting To be used in ST 2/B sections
Specifications
Specifications
| Condition on delivery | Packaging unit in standard length |
| Profile slot | 10 |
| Color | Natural |
| Delivery unit | 16 |
| Mass [m] [kg] | 2.8 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 49.6 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 25.8 |
| Profile surface [A] [cm²] | 10.4 |
| Moment of resistance in the x-direction [Wx] [cm³] | 12.1 |
| Moment of resistance in the y-direction [Wy] [cm³] | 11.5 |
| Length [L] | 6070.0 |
| Material | Aluminum, anodized |
| Weight [kg] | 295 |
