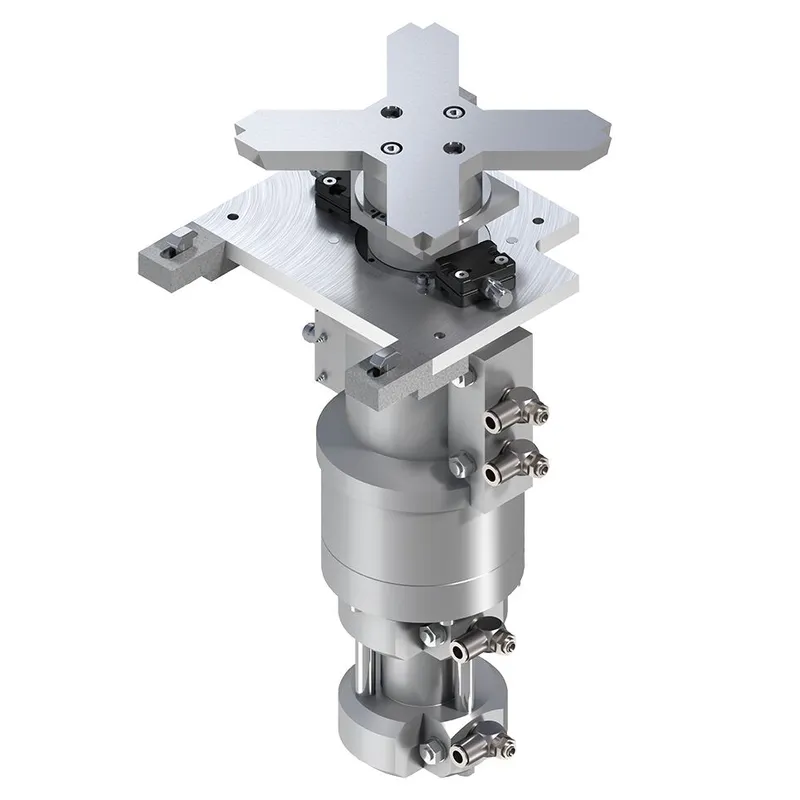

LIFT-ROTATE UNIT HD2 B320*LT160 180 40
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Lift rotary units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842525863 be shipped?
3842525863 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842525863 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842525863 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842525863, subject to availability and destination.

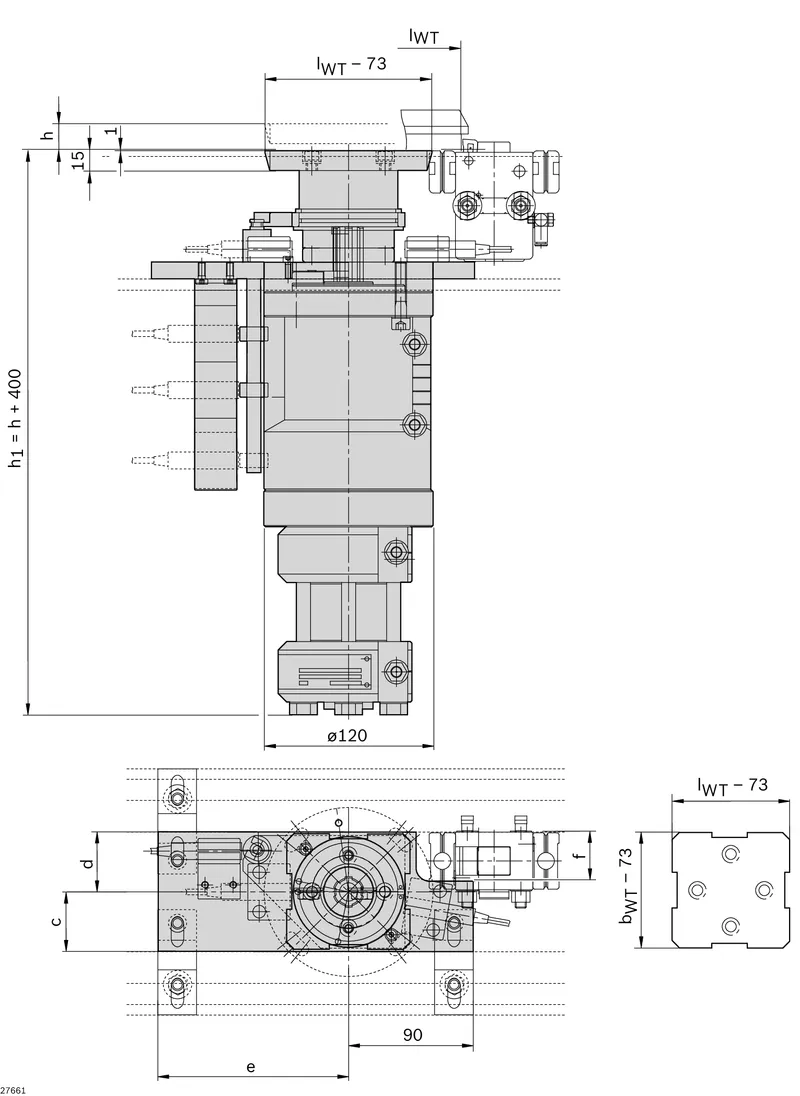

HD 2, b320, l lift rotate unit<sub>T</sub>160, DW180, h40 Turning angles on the Z axis: 90° or 180°. If necessary, the rotational direction of the HD 2/90° can be actuated individually for each workpiece pallet WT lift 40 mm or 90 mm above transportation level. The version with a 40 mm lift is suitable for turning workpiece pallets directly above the conveyor section. If there are any components mounted at the side of the workpiece pallet, e.g. identification and data storage modules, it may be necessary to select the version with a 90 mm lift Max. permitted total mass moment of inertia: 0.65 kgm<sup>2</sup> Can be combined with WT 2 and WT 2/LS (only with LS version)
