LIFT-ROTATE UNIT HD2 B160*LT160 180 90

Name: LIFT-ROTATE UNIT HD2 B160*LT160 180 90
Brand: Bosch Rexroth
SKU: 3842525850

MPN: 3842525850 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lift rotary units
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842525850 be shipped?

3842525850 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842525850 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842525850 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842525850, subject to availability and destination.

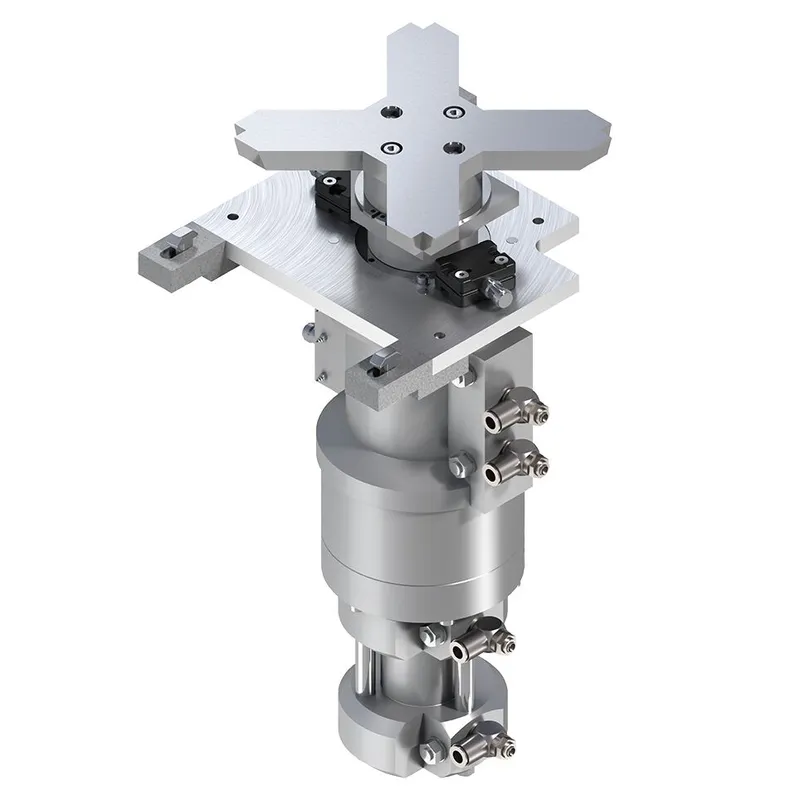

HD 2, b160, l lift rotate unit<sub>T</sub>160, DW180, h90 Turning angles on the Z axis: 90° or 180°. If necessary, the rotational direction of the HD 2/90° can be actuated individually for each workpiece pallet WT lift 40 mm or 90 mm above transportation level. The version with a 40 mm lift is suitable for turning workpiece pallets directly above the conveyor section. If there are any components mounted at the side of the workpiece pallet, e.g. identification and data storage modules, it may be necessary to select the version with a 90 mm lift Max. permitted total mass moment of inertia: 0.65 kgm<sup>2</sup> Can be combined with WT 2 and WT 2/LS (only with LS version)

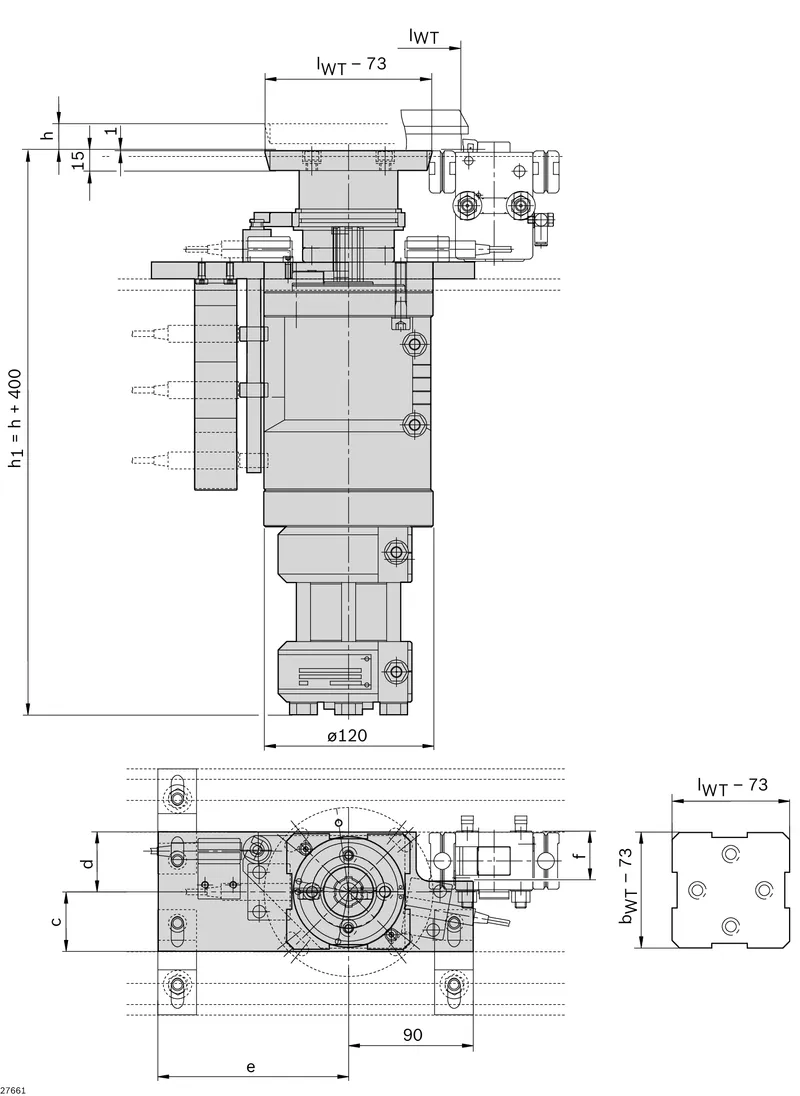

Specifications

ESD	Yes
Dimension [c] [mm]	42
Dimension [d] [mm]	42
Workpiece pallet total weight [mG] [kg]	16
Lift of WT over conveyor medium [h0]	90
Track width in direction of transport [b] [mm]	160
Length in direction of transport [lT] [mm]	160
Scope of delivery	Incl. fastening material
Required accessories	M12x1 Sensor with Rated Sensing Range of S<sub>N</sub>≥ 4 mm, Cannot be Installed Flush, but Rather with 0.5 mm; Stop gate VE 2/...
Weight [kg]	26.8
