ASSEMBLY KIT VERRIEGELUNG
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Lock mechanism for double door |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842525780 be shipped?
3842525780 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842525780 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842525780 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842525780, subject to availability and destination.

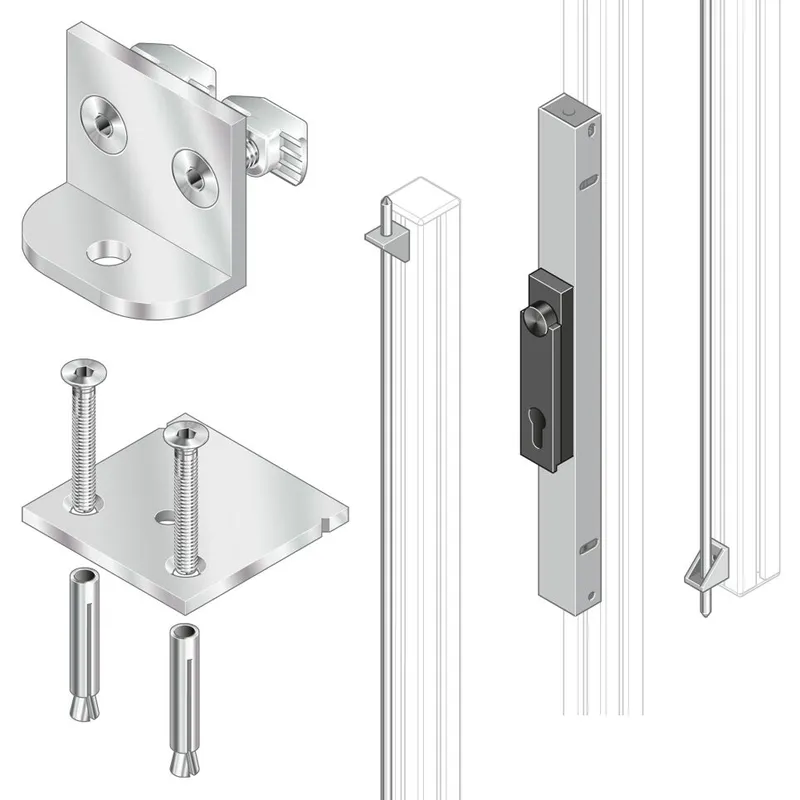

Lock mechanism assembly kit Components for constructing a lock mechanism for double doors Optional installation of a standard lock cylinder in the lock mechanism for the double door Lock mechanism assembly kit (<b>A</b>) for individually designed double doors with H<sub>T</sub>max = 2000 mm Lock bracket (<b>B</b>) for accommodating the lock bolt bar Base plate (<b>C</b>) for mounting the lock bolt bar; fastened to the floor with supplied dowels. For doors which can be driven through
Specifications
Specifications
| Profile slot | 10 |
| Packaging unit | 1 |
| Scope of delivery | Lock mechanism for double door, incl. fastening material (FS) |
| Material information | Door handle: PA, black; Housing: Aluminum; Lock bolt guide bracket: Diecast zinc; Lock bolt: Steel, galvanized |
| Fastening material | 2x countersunk screw DIN7991-M6x20; 2x cylinder head screw DIN7984-M6x16; 4x T-nut groove 10 M6; 4x flattened round head screw ISO7380-M6x8 |
| Recommended accessories | Conventional lock cylinder 35/35 is not included in the scope of delivery |
| Weight [kg] | 1 |
