ROCKER WI 2/X

Name: ROCKER WI 2/X
Brand: Bosch Rexroth
SKU: 3842524447

MPN: 3842524447 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Rockers
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842524447 be shipped?

3842524447 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842524447 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842524447 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842524447, subject to availability and destination.

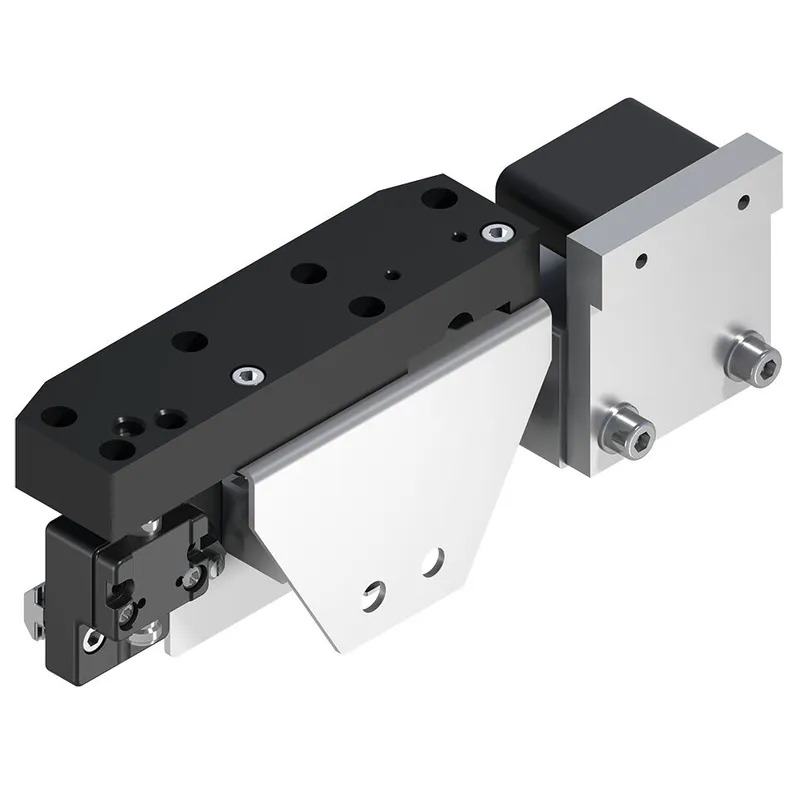

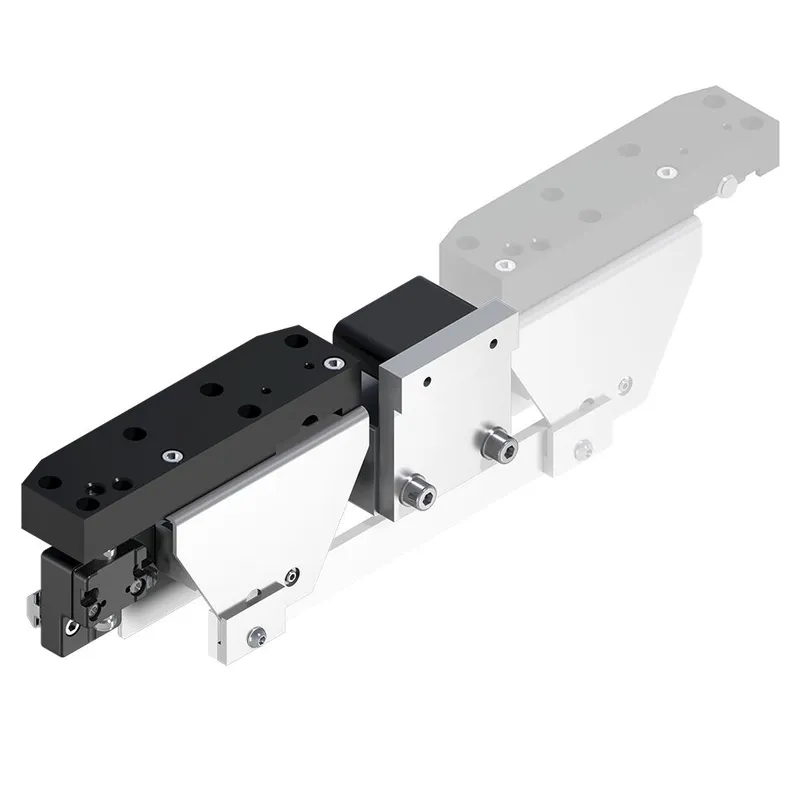

WI 2/X Rocker Fixed stop for workpiece pallet in the transverse conveyor For area monitoring For workpiece pallet recognition For permitted total weight of workpiece pallets > 30 kg Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm Can be combined with WT 2, WT 2/F and WT 2/LS Suitable for use in an EPA

Specifications

ESD	Yes
Mass [m] [kg]	1.5
Workpiece pallet total weight [mG] [kg]	100
Monitoring range, min [mm]	430
Monitoring range, max [mm]	1230
Scope of delivery	Including fastening material for installation on ST 2/... conveyor section or BS 2/... belt section.
Notice	Max. total WT weight applies when infeeding from a transverse section into a main section; for area monitoring, only the max. system weight of 240 kg cannot be exceeded; Min. WT weight applies per rocker body
Required accessories	Sensor M12 circular with rated switching distance S<sub>N</sub> = 4 mm at vertical installation; Sensor M12 circular with rated switching distance S<sub>N</sub> = 8 mm at horizontal installation
Recommended accessories	Additional MS rocker extension with second rocker and connecting strip for installation of a rocker positioned between the start and end of the conveyor section.
Weight [kg]	2.17
