CONNECTING PIECE 3/8
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Connection piece |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842523092 be shipped?
3842523092 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842523092 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842523092 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842523092, subject to availability and destination.

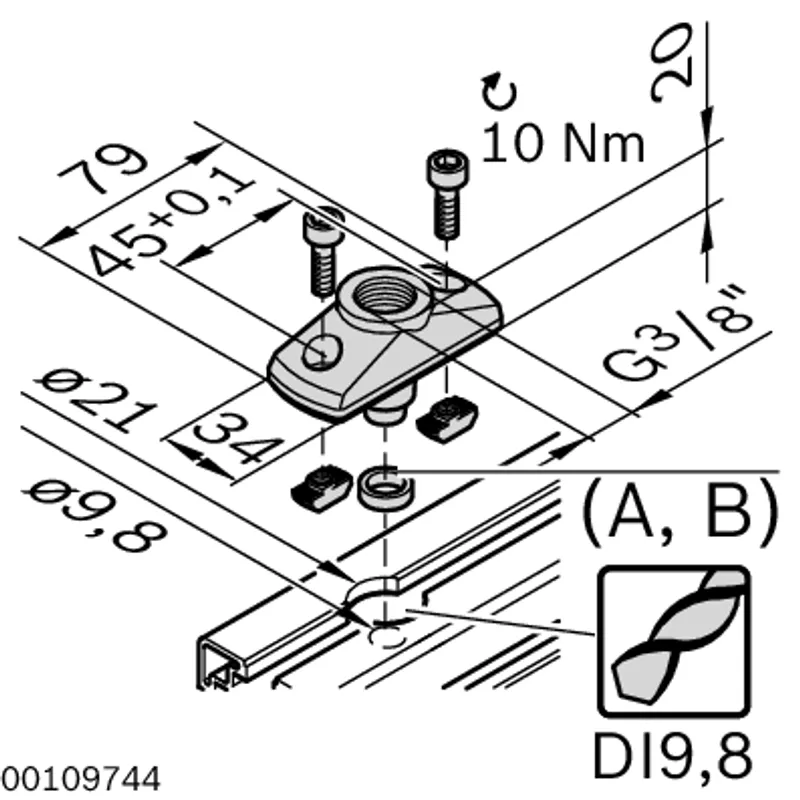

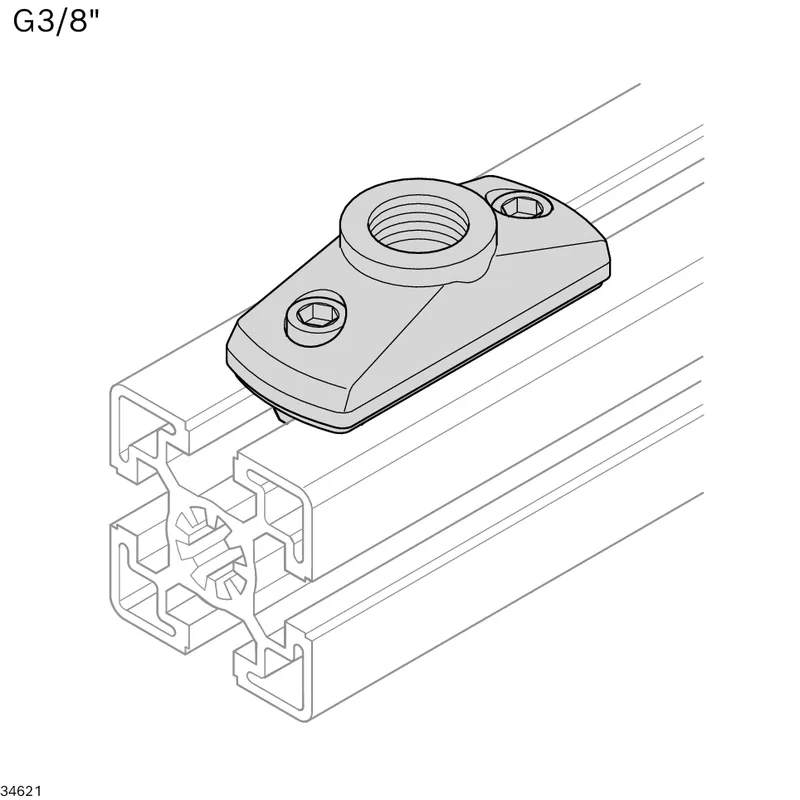

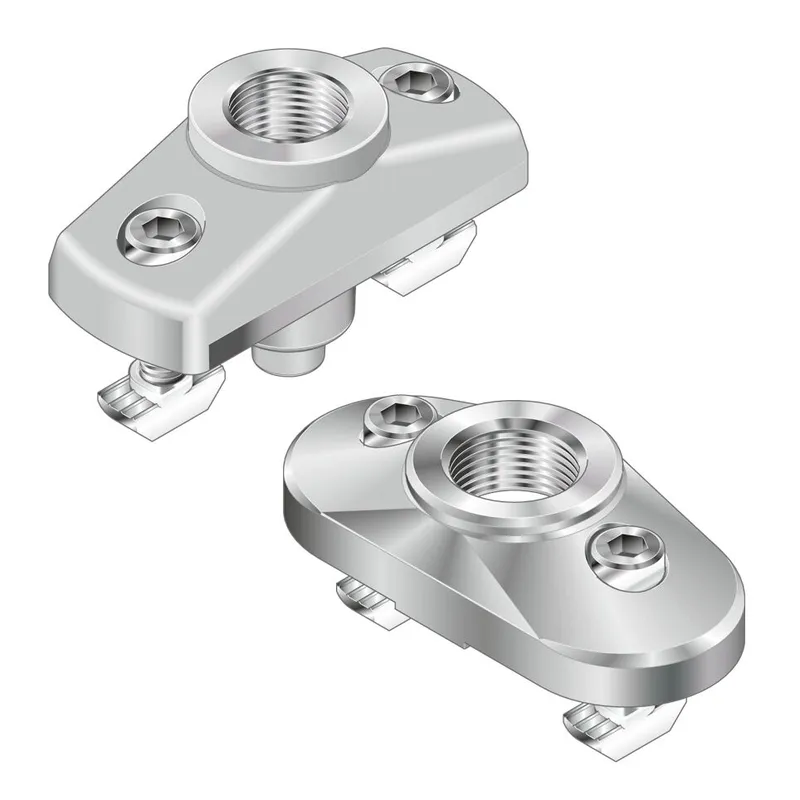

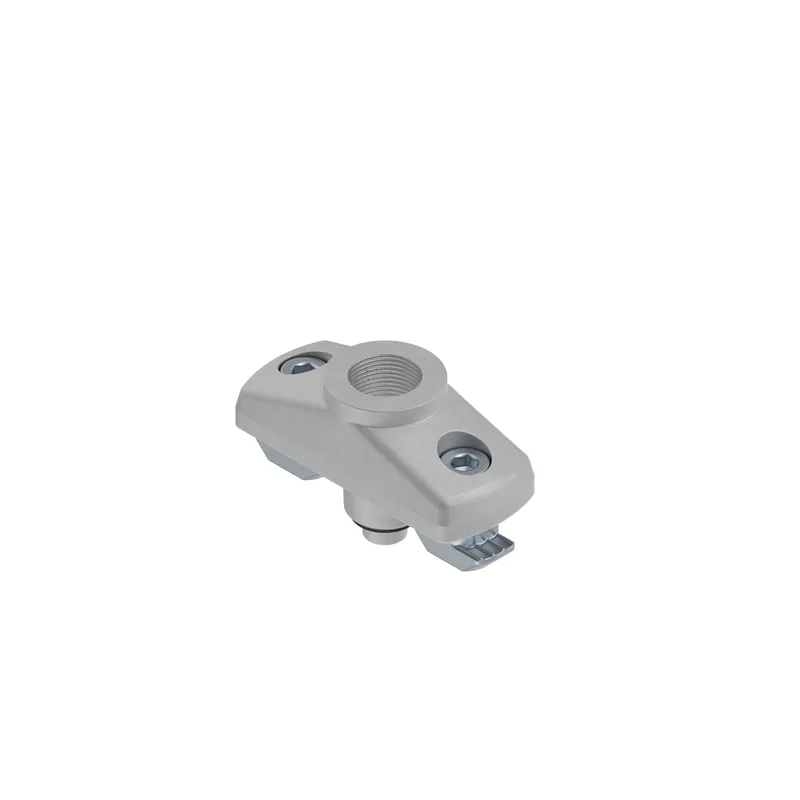

Connection piece G3/8" For compressed-air intake or discharge at any point on the profile G3/8" for connection at central hole Suitable for light and standard profiles Profile finishing: blind hole DI9,8; blind hole ø21 mm (drilling jig 3 842 528 574) For a maximum pressure (p<sub>max</sub>max) of 8 bar
Specifications
Specifications
| Profile slot | 10 |
| Packaging unit | 1 |
| Scope of delivery | Incl. fastening material, seals |
| Material information | Flanged plate: Diecast aluminum; Seal: NBR |
| Material | Diecast aluminum |
| Fastening material | 2x T-nut groove 10 M6; 2x cylinder head screw ISO4762-M6x16 |
| Required accessories | Seals |
| Weight [kg] | 0.1 |
