GUIDE COMPONENT NUT 8/10

Name: GUIDE COMPONENT NUT 8/10
Brand: Bosch Rexroth
SKU: 3842516715

MPN: 3842516715 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Folding door element
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842516715 be shipped?

3842516715 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842516715 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842516715 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842516715, subject to availability and destination.

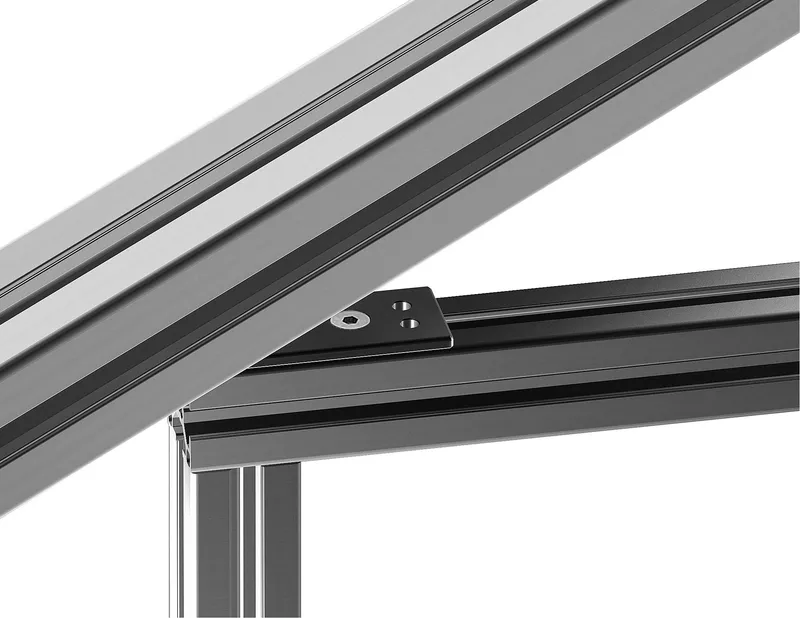

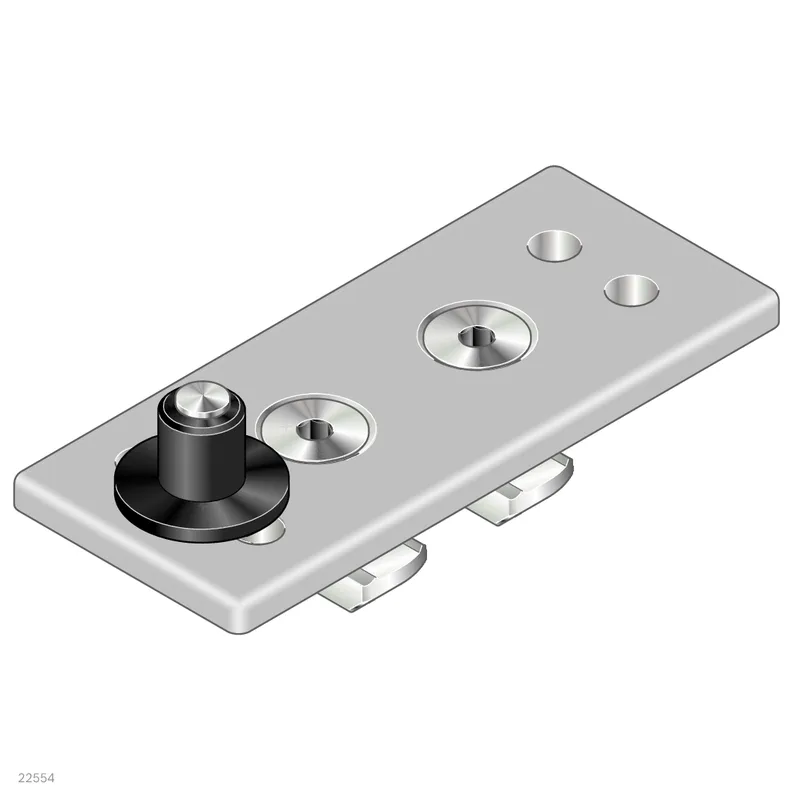

Folding door element For a simultaneous swinging and sliding motion for making folding doors out of 30 mm profiles Extremely long service life (approx. 50,000 actuations) Suitable for frames made of profiles with 8 mm and 10 mm slot Frame and door profile are always flush (guide ring position depends on the thickness of the frame profile)

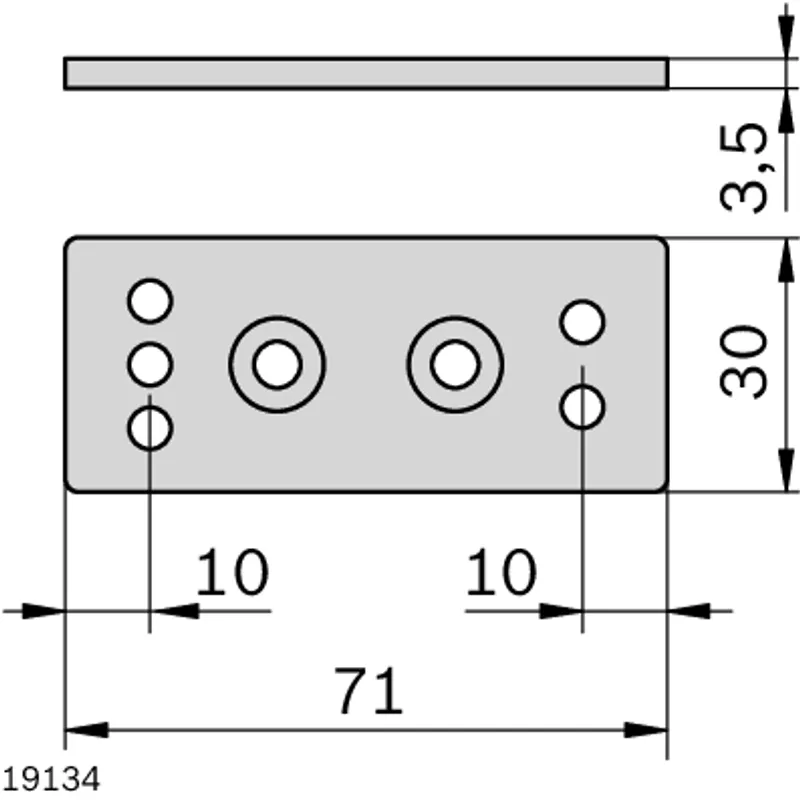

Specifications

Profile slot	10; 8
Length max [L max] [mm]	800
Packaging unit	1
Fastening material	2x T-nut groove 8 M5; 2x countersunk screw DIN7991-M5x10

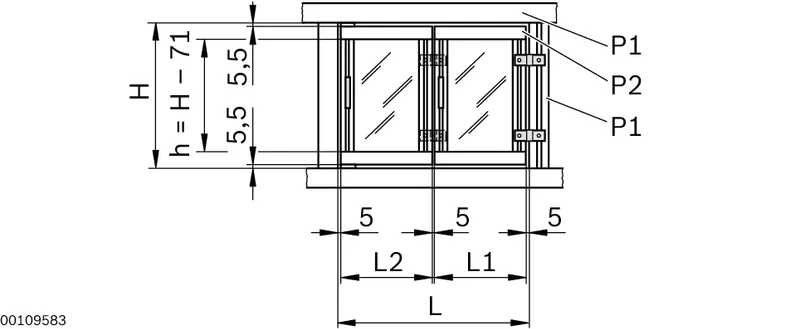

Length [L2] [mm]	0,5L+10,8; 0,5L+13,3; 0,5L+14,5
Bending moment 1 [Nm]	20.0
Force [Fmax] [N]	120.0

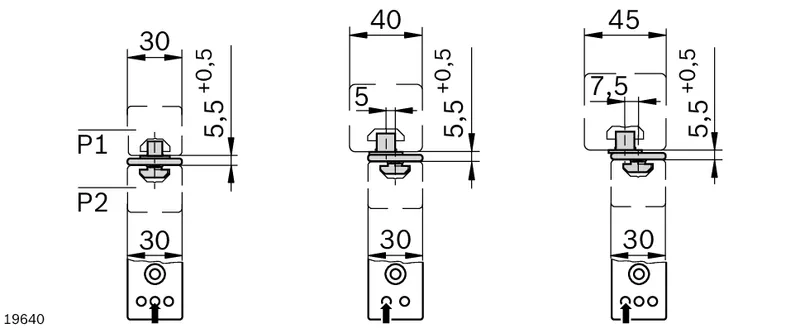

Profile P1 [mm]	30x30; 40x40; 45x45
Profile P2 [mm]	30x30
Scope of delivery	Incl. fastening material
Hmax. [mm]	1200
Material information	Fastening material: Steel, galvanized; Folding door element: Diecast zinc; Guide ring: PA, black
Weight [kg]	0.07
