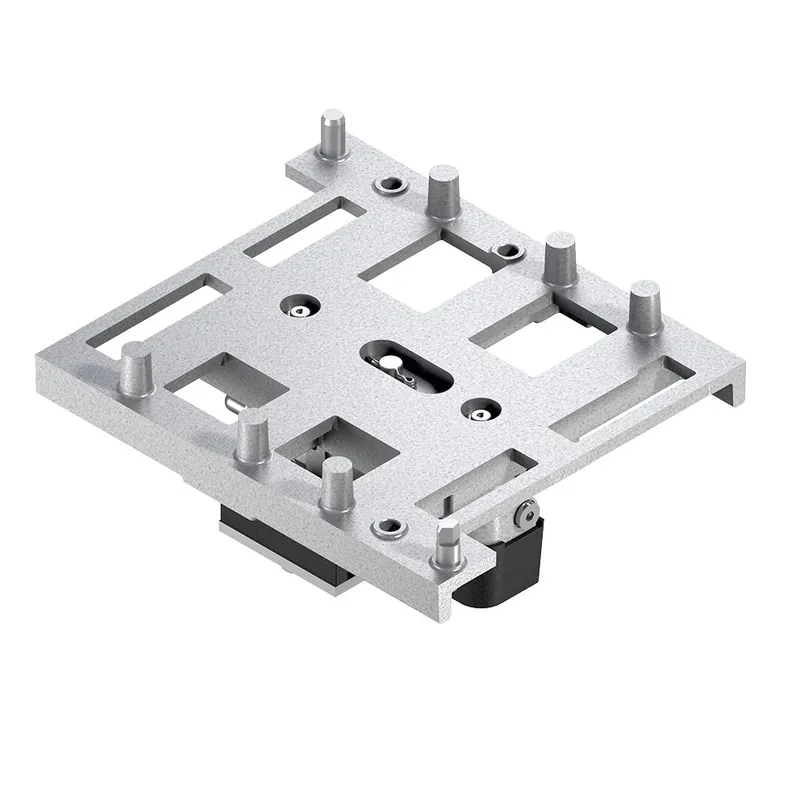

POSITIONING UNIT PE 2 LT240*B160

Name: POSITIONING UNIT PE 2 LT240*B160
Brand: Bosch Rexroth
SKU: 3842504707

MPN: 3842504707 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Positioning units TS 2plus
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842504707 be shipped?

3842504707 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842504707 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842504707 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842504707, subject to availability and destination.

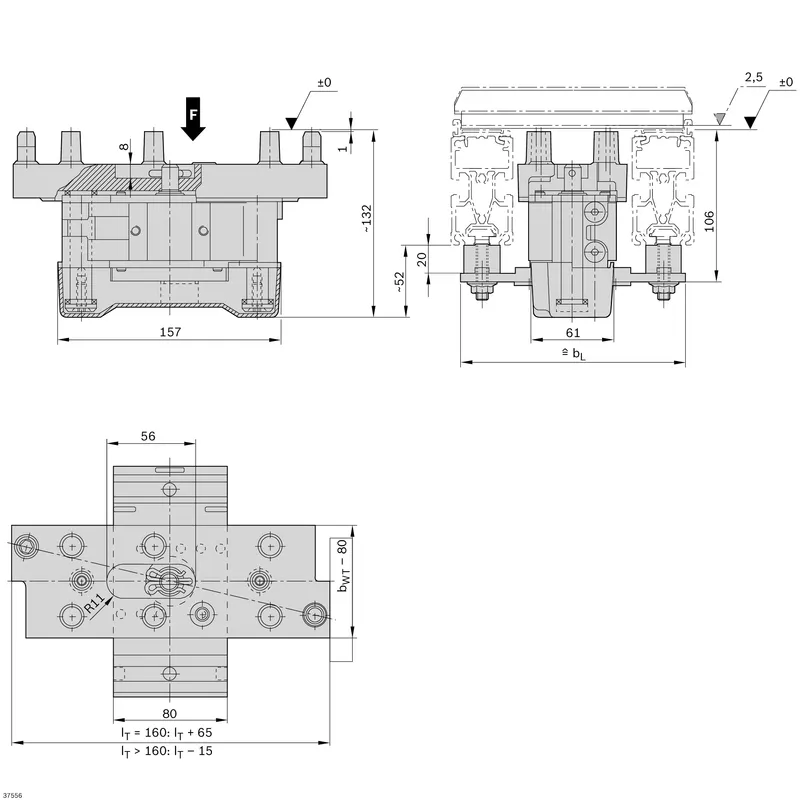

PE 2 positioning unit, 160 x 240 For positioning a workpiece pallet in a manual/automatic processing station For high repetition accuracy requirements up to ±0.1 mm Can be combined with all WT 2 and WT 2/F workpiece pallets up to 400 x 400 mm The sizes 160 x 160 mm to 240 x 400 mm can only be combined with WT 2/LS in the LS version. All other sizes (320 x 160 mm to 400 x 400 mm) can be combined with WT 2/LS without restrictions

Specifications

ESD	Yes
Thread size	G1/8”
Workpiece pallet total weight [mG] [kg]	30
Repetition accuracy	±0,1
Permissible vertical process force [N]	300
Lift of WT over conveyor medium [h0]	2,5
Track width in direction of transport [b] [mm]	160
Length in direction of transport [lT] [mm]	240
Scope of delivery	Incl. fastening material
Delivery information	Fully assembled
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Required accessories	Stop gate VE 2/...
Recommended accessories	Position sensing kit for PE 2
Weight [kg]	2.8
