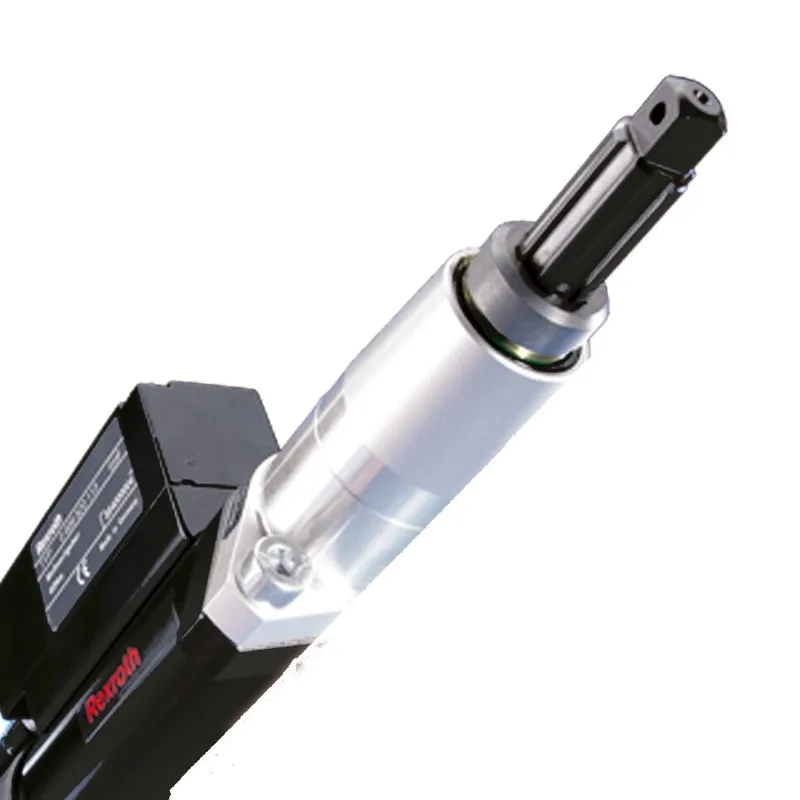

STRAIGHT OUTPUT GK3C350 SZ5 3/4SQP
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Straight output drive |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 0608800081 be shipped?
0608800081 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0608800081 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0608800081 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0608800081, subject to availability and destination.
Working range 50-500 Nm Max. output speed: 515 1/min Various lengths with axial compensation Standard tool mounts Highest possible efficiency Maintenance-free for 1 million full load cycles
Specifications
Specifications
| Nominal size [mm] | 5 |
| Working range (max.) [Nm] | 500.0 |
| Working range (min) [Nm] | 50.0 |
| Maximum drive speed (1/min) [min⁻¹] | 145.0 |
| Tool mount | 3/4" square with centering pin |
| Weight [kg] | 3.5; 4.02 |
| Typical efficiency | 1 |
| Maximum torque [Nm] | 500.0 |
| Length A | 353 |
| Installation length | 371.0 |
| Spring force (max) | 155.0 |
| Spring force (min) | 40.0 |
| Reduction ratio | 1 |
| Spring travel | 80.0 |
| Order number | 0608800081 |
| Code | GK3C350 |
