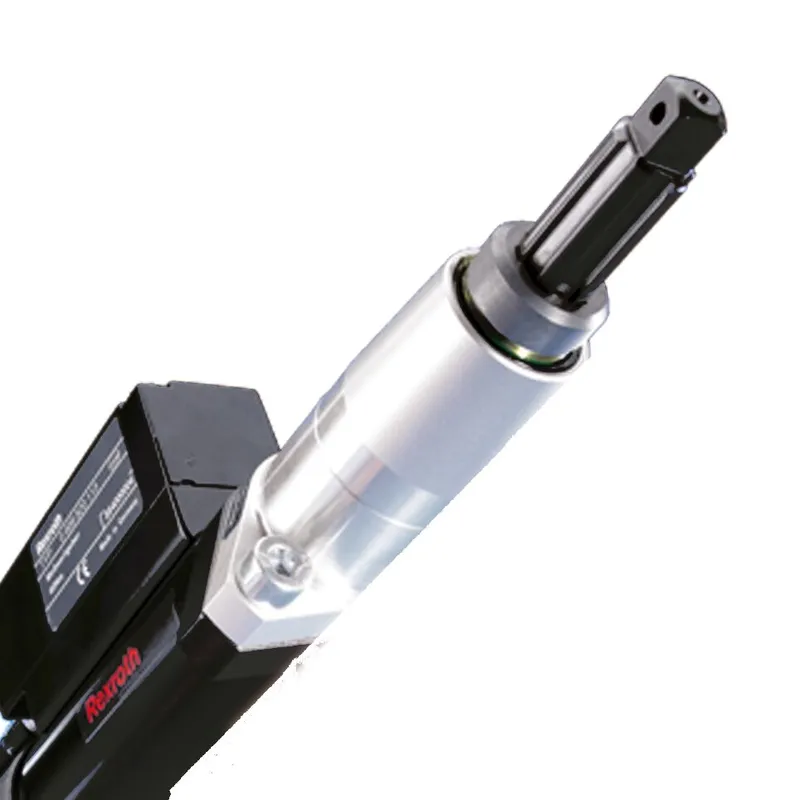

STRAIGHT OUTPUT G1A102 SZ3 3/8SQ
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Straight output drive |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 0608800062 be shipped?
0608800062 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0608800062 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0608800062 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0608800062, subject to availability and destination.
Working range 1.7-56 Nm Max. output speed: 740 1/min Various lengths with axial compensation Standard tool mounts Highest possible efficiency Maintenance-free for 1 million full load cycles
Specifications
Specifications
| Nominal size [mm] | 3 |
| Working range (max.) [Nm] | 56.0 |
| Working range (min) [Nm] | 6.0 |
| Maximum drive speed (1/min) [min⁻¹] | 295.0 |
| Tool mount | 3/8" square |
| Weight [kg] | 0.33; 0.4 |
| Maximum torque [Nm] | 55.0 |
| Length A | 102 |
| Installation length | 112.0 |
| Spring force (max) | 39.0 |
| Spring force (min) | 16.0 |
| Reduction ratio | 1 |
| Spring travel | 25.0 |
| Order number | 0608800062 |
| Code | G1A102 |
