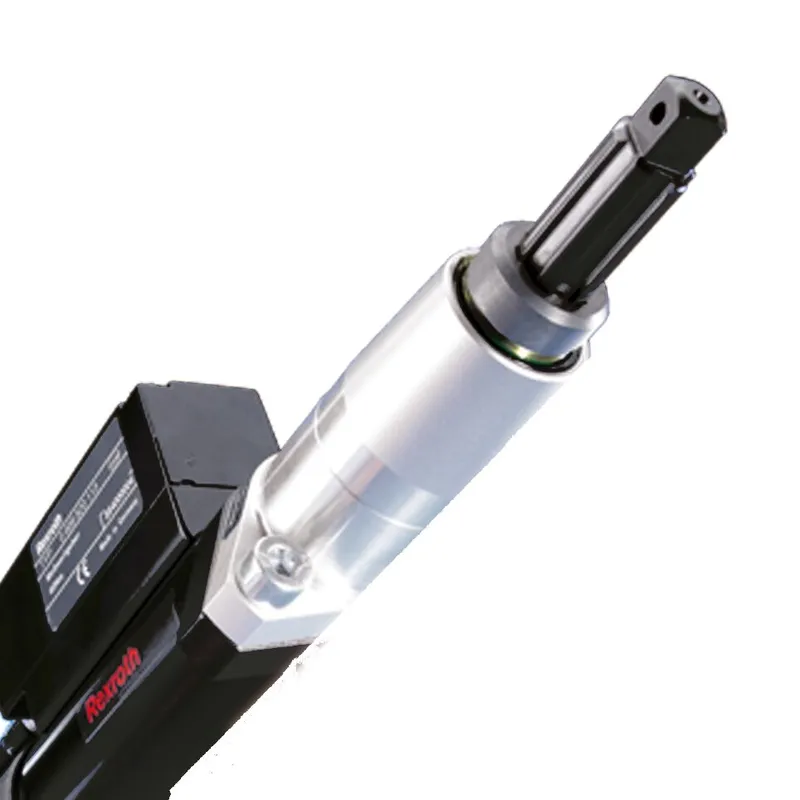

STRAIGHT OUTPUT GK2B181 SZ4 7/16QC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Straight output drive |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 0608800008 be shipped?
0608800008 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0608800008 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0608800008 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0608800008, subject to availability and destination.
Working range 5.7-150 Nm Max. output drive speed: 1000 rpm Various lengths with axial compensation Standard tool mounts Highest possible efficiency Maintenance-free for 1 million full load cycles
Specifications
Specifications
| Nominal size [mm] | 4 |
| Working range (max.) [Nm] | 150.0 |
| Working range (min) [Nm] | 15.0 |
| Maximum drive speed (1/min) [min⁻¹] | 340.0 |
| Tool mount | 7/16" quick-change chuck |
| Weight [kg] | 1.0; 1.29 |
| Typical efficiency | 1 |
| Maximum torque [Nm] | 150.0 |
| Length A | 181 |
| Installation length | 195.0 |
| Spring force (max) | 93.0 |
| Spring force (min) | 30.0 |
| Reduction ratio | 1 |
| Spring travel | 50.0 |
| Order number | 0608800008 |
| Code | GK2B181 |
