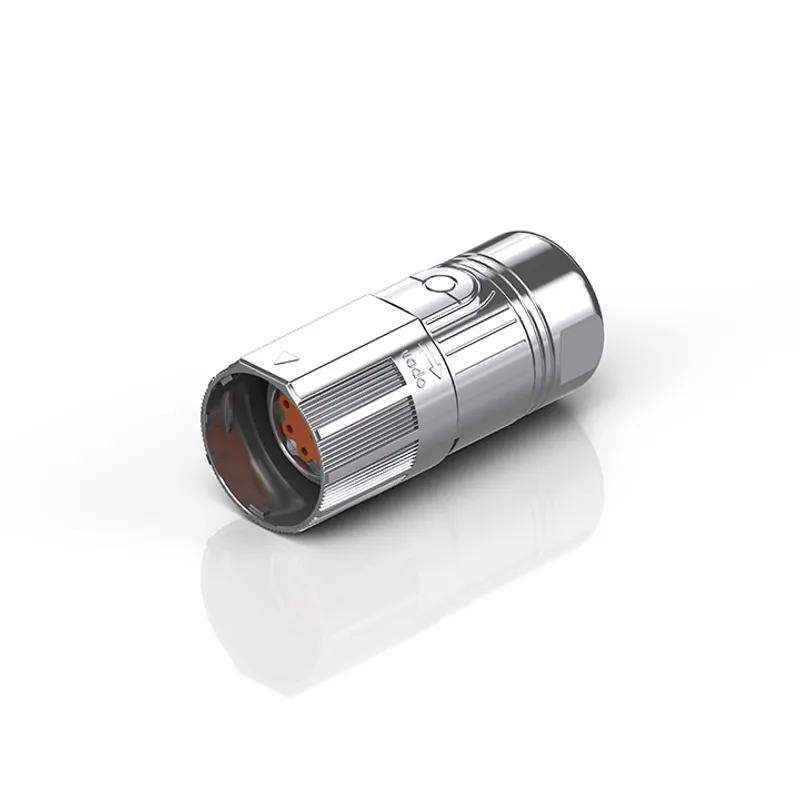

EMC resolver connector
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Feedback connectors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ZS4000-2106 be shipped?
ZS4000-2106 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZS4000-2106 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZS4000-2106 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZS4000-2106, subject to availability and destination.
EMC resolver connector (female), M23, 12-pin, for resolver cable ZK453x-8010-xxxx (counterpart for motor socket AM8x4x up to AM8x7x
Specifications
Specifications
| Installation size | M23 |
| Connector type | plug |
| Contact type | female |
| Number of positions (face) | 12-pin |
| Mating cycles | 500 |
| Wire termination | crimp connection |
| A1 | 59.00 mm |
| A2 | 26.00 mm |
