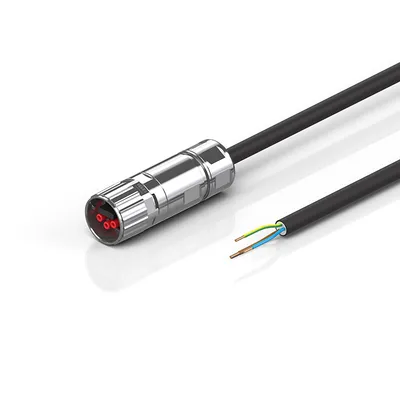

B17, Power cable, PUR, 3 G 1.5 mm², drag-chain suitable, key 2 (230 V AC)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Hybrid cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ZK7643-1800-0xxx be shipped?
ZK7643-1800-0xxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZK7643-1800-0xxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZK7643-1800-0xxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZK7643-1800-0xxx, subject to availability and destination.
Power cable, IP67, 3 G 1.5 mm², PUR, drag chain suitable, mechanical coding 2, B17, plug, straight, male, pins 3, power coded – open
Specifications
Specifications
| Installation size | open end |
| Connector type | plug |
| Contact type | male+blanking plug |
| Number of positions (face) | 3-wire |
| Coding | Power |
| Mating cycles | ≥ 100 |
| Wire termination | crimp connection |
| Cross-section | 3 G 1.5 mm² (approx. AWG16) |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Jacket color | black |
| CE | yes |
| A1 | 73.60 mm |
| A2 | 23.00 mm |
