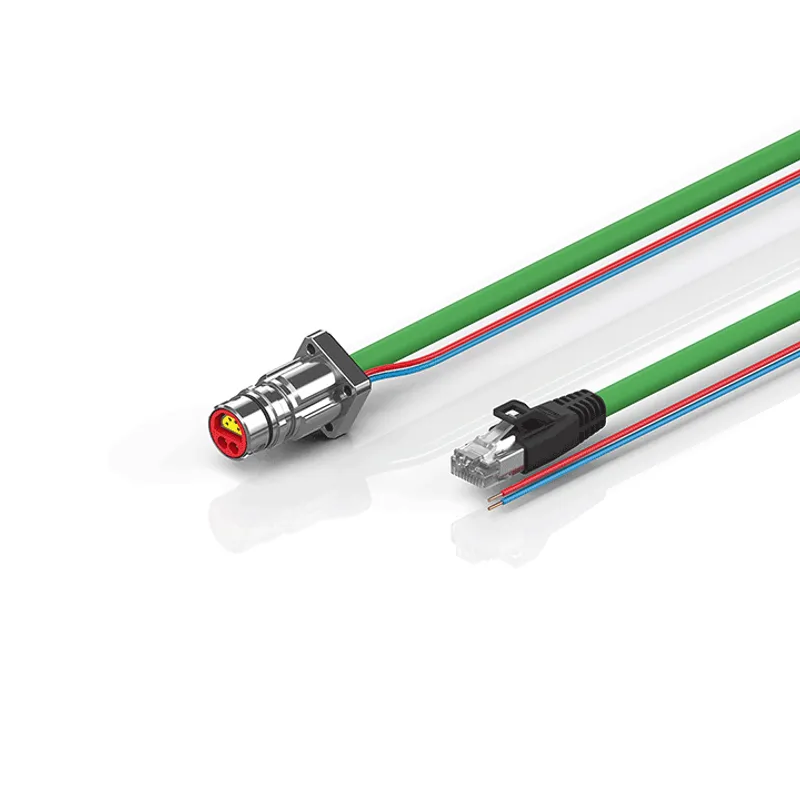

B12, ENP cable, PUR, 2 x 0.75 mm² + (1 x 4 x AWG22), drag-chain suitable, key 1 (24 V DC)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Hybrid cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ZK7102-BF00-Axxx be shipped?
ZK7102-BF00-Axxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZK7102-BF00-Axxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZK7102-BF00-Axxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZK7102-BF00-Axxx, subject to availability and destination.
B12, flange, straight, long, male+female, pins 2+4, square flange, EtherCAT-coded – 1 x RJ45, plug, straight | 1 x open
Specifications
Specifications
| Installation size | open end |
| Connector type | plug |
| Contact type | male |
| Number of positions (face) | 2-wire |
| Coding | EtherCAT-coded |
| Mating cycles | ≥ 750 |
| Wire termination | crimp connection |
| Shielding | yes |
| Rated current | 1.5 A |
| Rated voltage | 150 V |
| Cross-section (power) | 2 x 0.75 mm² (approx. AWG18) |
| Cross-section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 6.5 mm ± 0.2 mm (0.142" ± 0.0079") |
| Min. bending radius, moved | 7.5 x outer cable diameter |
| Min. bending radius, fixed installation | 5 x outer cable diameter |
| Max. number of cycles | 3 million |
| Jacket color | green |
| CE | yes |
| A1 | 36.00 mm |
| A2 | 20.00 mm |
| A3 | 17.40 mm |
| A4 | 31.00 mm |
| B1 | 43.80 mm |
