Available on request

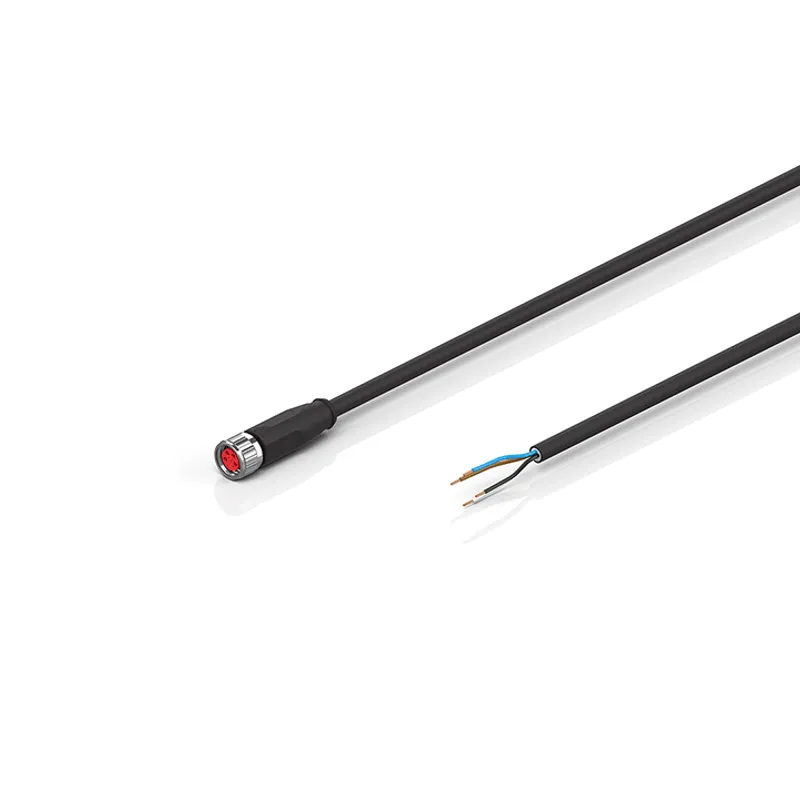

Power cable, PVC, 4 x 0.34 mm², fixed installation, CMG, CSA, PLTC-ER
MPN: ZK2020-3200-Exxx · Brand: Beckhoff
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Power cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ZK2020-3200-Exxx be shipped?
ZK2020-3200-Exxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZK2020-3200-Exxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZK2020-3200-Exxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZK2020-3200-Exxx, subject to availability and destination.
M8, socket, straight, female, 4-pin – open
Specifications
Specifications
| Shielding | no |
| Installation size | open end |
| Connector type | socket |
| Contact type | female |
| Number of positions (face) | 4-wire |
| Coding | A‑coded |
| Rated current | 4 A at 40°C (leaning on IEC 61076-2-104) |
| Rated voltage | 30 V (according to IEC 61076-2-104) |
| Recommended torque, nut | 0.4 Nm |
| Mating cycles | ≥ 100 (according to IEC 60512-9a) |
| Cross-section | 4 x 0.34 mm² (AWG22) |
| Use | fixed installation |
| Material jacket | PVC (polyvinyl chloride) |
| Min. bending radius, fixed installation | 6 x outer cable diameter |
| Jacket color | gray |
| A1 | 34.00 mm |
| A2 | Ø 10.1 mm |
