Available on request

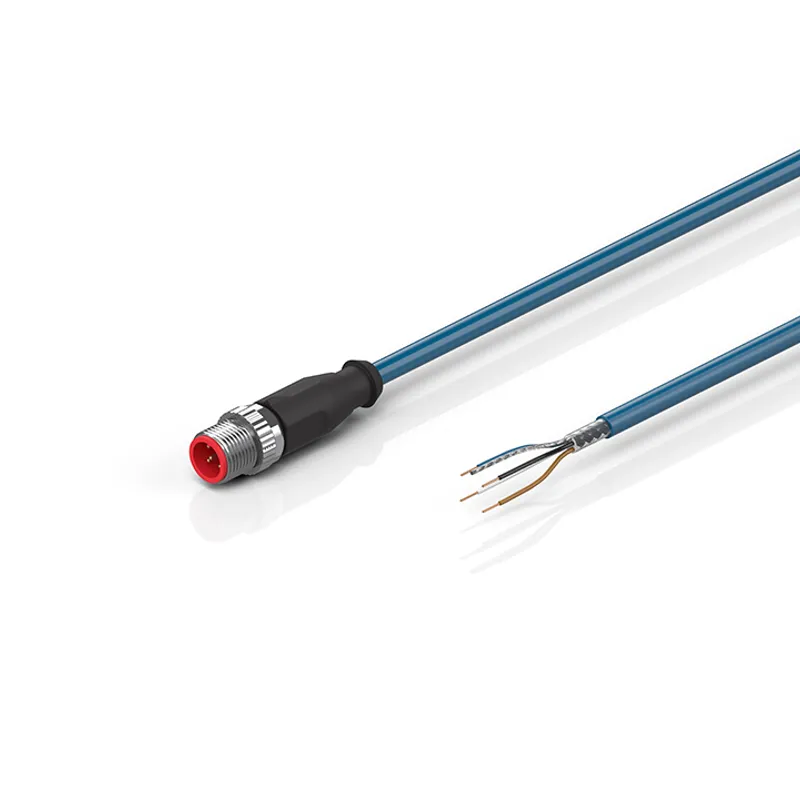

Sensor cable, shielded, blue, PUR, 4 x 0.34 mm² + strand, drag-chain suitable
MPN: ZK2000-5100-Axxx · Brand: Beckhoff
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Sensor cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ZK2000-5100-Axxx be shipped?
ZK2000-5100-Axxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZK2000-5100-Axxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZK2000-5100-Axxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZK2000-5100-Axxx, subject to availability and destination.
M12, plug, straight, male, 5-pin, shielded, A-coded – open
Specifications
Specifications
| Shielding | yes |
| Installation size | open end |
| Connector type | plug |
| Contact type | male |
| Number of positions (face) | 4-wire + strand and shielding |
| Coding | A‑coded |
| Rated current | 4 A at 40°C (according to IEC 61076-2-101) |
| Rated voltage | 60 V (according to IEC 61076-2-101) |
| Recommended torque, nut | 0.6 Nm |
| Mating cycles | ≥ 100 (according to IEC 60512-9a) |
| Cross-section (power) | 4 x 0.34 mm² (AWG22) and shield |
| Cross-section (signal) | 4 x 0.34 mm² (AWG22) and shield |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 5.4 mm ± 0.2 mm (0.213" ±0.0079") |
| Min. bending radius, moved | 10 x outer cable diameter |
| Min. bending radius, fixed installation | 5 x outer cable diameter |
| Max. number of cycles | 2 million |
| Jacket color | blue |
| A1 | 49.0 mm |
| A2 | Ø 14.5 mm |
