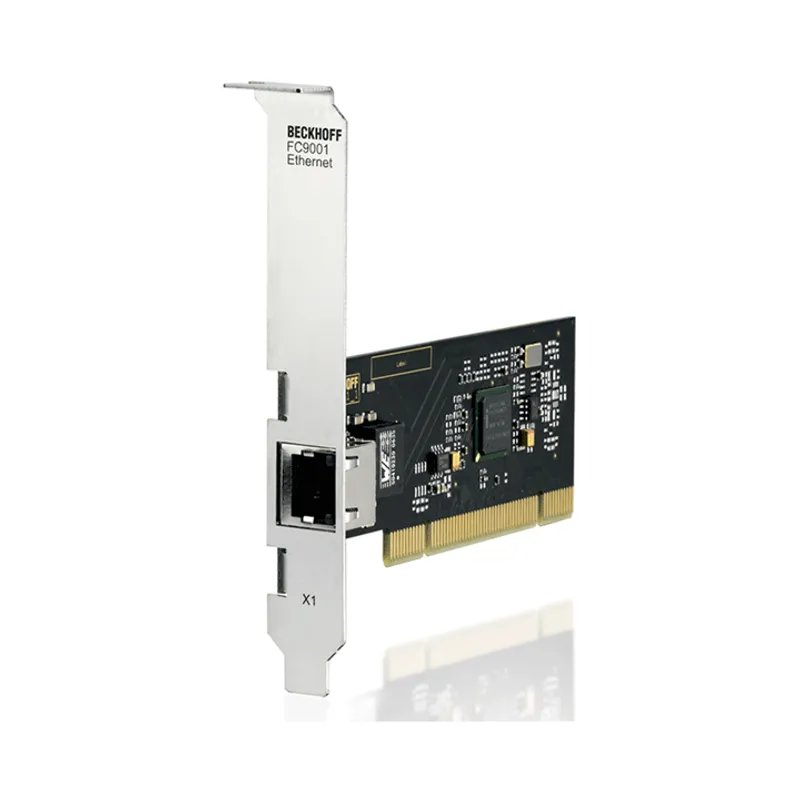

Ethernet card, 1 channel, PCI
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FC9001-0010 be shipped?
FC9001-0010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FC9001-0010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FC9001-0010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FC9001-0010, subject to availability and destination.
The Ethernet network cards can be used in office and automation networks and offer the following benefits: plug-and-play interface 10/100 Mbit/s, full duplex maximum performance through hardware-integrated checksum creation and verification The hardware
Specifications
Specifications
| Fieldbus | all Ethernet (IEEE 802.3) based protocols |
| PC interface | PCI™ |
| Number of Ethernet ports | 1 |
| Data transfer rates | 10/100 Mbit/s |
| Ethernet interface | 100BASE-T Ethernet |
| Cable length | up to 100 m |
| Standard drivers | standard drivers or Beckhoff driver for different Windows versions (available from Beckhoff website) |
| Real-time drivers | TwinCAT drivers for EtherCAT/real-time Ethernet. Drivers can be selected separately for each channel. |
| Hardware diagnostics | 2 LEDs per channel, activity, link |
| Operating temperature | 0…55°C |
