EtherCAT IP core for Lattice FPGAs
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ELxxxx, ETxxxx, FBxxxx | Hardware |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ET1825, ET1826, ET1827 be shipped?
ET1825, ET1826, ET1827 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ET1825, ET1826, ET1827 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ET1825, ET1826, ET1827 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ET1825, ET1826, ET1827, subject to availability and destination.

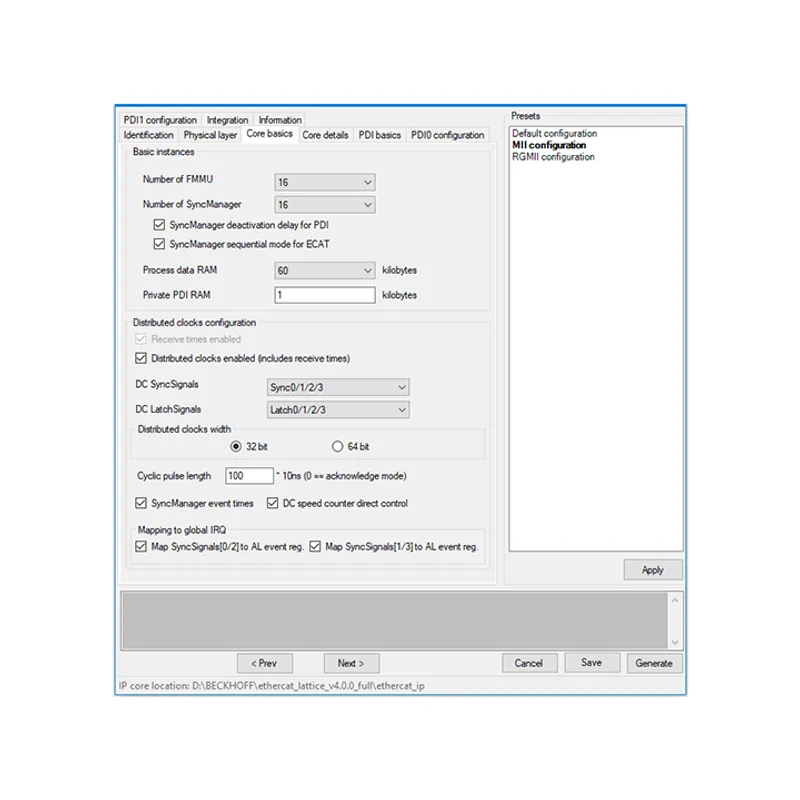

The EtherCAT IP core enables the EtherCAT communication function and application-specific functions to be implemented on an FPGA (field programmable gate array, an integrated circuit containing programmable logical components). The EtherCAT functionality
Specifications
Specifications
| PHY interface | 1…4 ports MII, 1…4 ports RGMII or 1…4 ports RMII |
| FMMUs | 0…16 |
| SYNC manager | 0…16 |
| DPRAM | 0…60 KB |
| Distributed clocks | 0…4 SYNC outputs, 0…4 latch inputs (32/64 bit) |
| Process data interfaces | PDI0: 32 bit digital I/O, SPI slave, 8/16/32 bit asynchrones µC-Interface, AMBA AXI4 interface. PDI1: 32 bit digital I/O, SPI slave, AMBA AXI4 interface. 64 bit general purpose I/O |
