Panel PC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | CP77xx |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CP77xx-xxxx-0050 be shipped?
CP77xx-xxxx-0050 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CP77xx-xxxx-0050 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CP77xx-xxxx-0050 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CP77xx-xxxx-0050, subject to availability and destination.

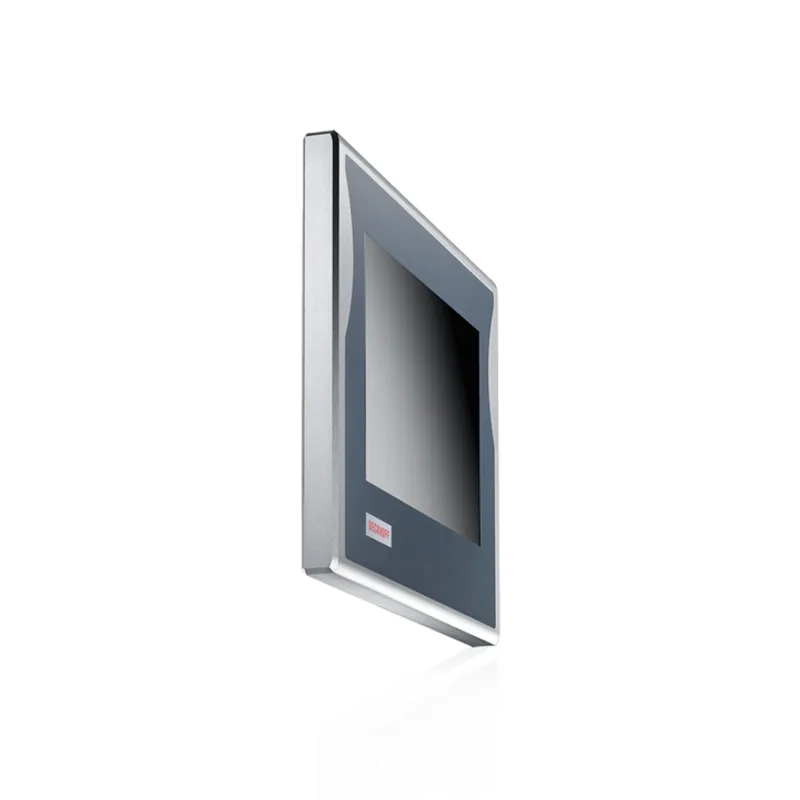

The CP77xx Panel PC series is designed for mounting arm installation. Control Panels form the front of the IP65 Panel PC. The right display size and keyboard are thus available for every application. The CP77xx Industrial PCs represent a powerful
Specifications
Specifications
| Device type | Panel PC |
| Housing | aluminum housing |
| Installation | 4 threaded holes M6 x 18 mm in the backplane |
| Protection rating | IP65 |
| Operating temperature | 0…45°C |
| Display size/resolution | 12" 800 x 600, 15" 1024 x 768 or 19" 1280 x 1024 |
| Touch screen | single-finger touch screen or touch pad |
| Front keyboard | alphanumerical or numerical PC keyboard in US layout or only function keys, each variant with 10 PLC special keys and LEDs or front laminate without keys, only display |
| Processor | Intel Atom® x5-E3930, 1.3 GHz, 2 cores (TC3: 40) |
| Motherboard | compact motherboard for Intel Atom® x5-E39xx |
| Memory | 4 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 2 x 10/100/1000BASE-T IP65 |
| Hard disks/flash | 40 GB CFast card |
| Interfaces | 1 x RS232 serial port interface in the backplane, DIN 12-pin IP65, with adapter cable from DIN 12-pin to D-sub, 9-pin |
| Power supply | 24 V DC |
| Operating system | – |
