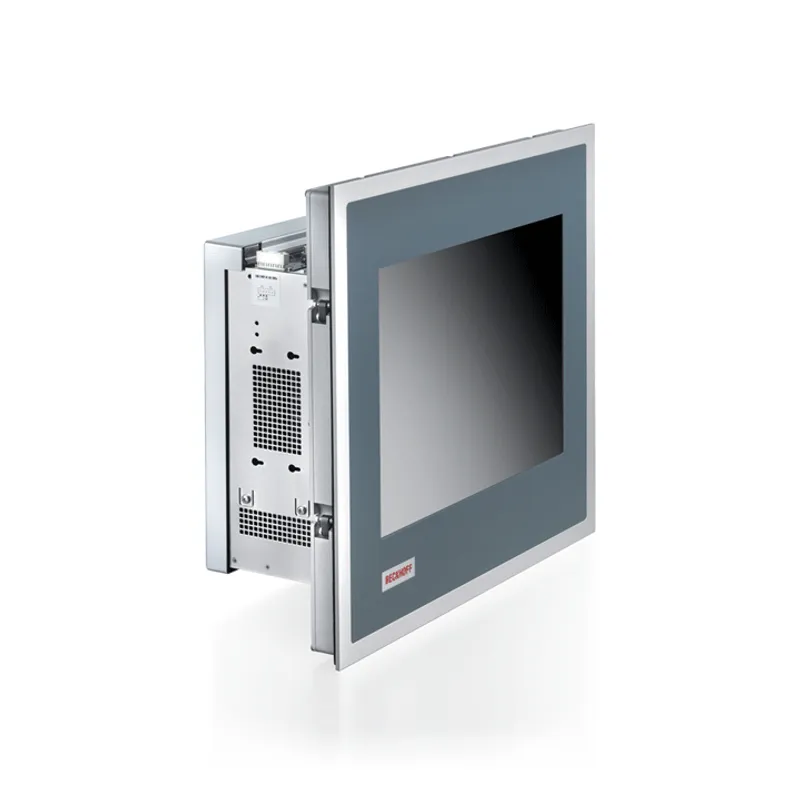

Built-in Panel PC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | CP65xx |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CP65xx-xxxx-0090 be shipped?
CP65xx-xxxx-0090 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CP65xx-xxxx-0090 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CP65xx-xxxx-0090 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CP65xx-xxxx-0090, subject to availability and destination.
The Panel PC series CP65xx is designed for installation in the front of a control cabinet. A built-in Control Panel with DVI and USB interface is the front of the Panel PC. The correct display size and keyboard are thus available for every application.
Specifications
Specifications
| Device type | Built-in Panel PC |
| Housing | 7 slot ATX housing |
| Installation | pull-out clamping levers for fast installation without loose parts |
| Protection rating | front side IP65, rear side IP20 |
| Operating temperature | 0…55°C |
| Display size/resolution | 12" 800 x 600, 15" 1024 x 768 or 19" 1280 x 1024 |
| Touch screen | single-finger touch screen or touch pad |
| Front keyboard | alphanumerical or numerical PC keyboard in US layout or only function keys, each variant with 10 PLC special keys and LEDs or front laminate without keys, only display |
| Processor | Intel® Celeron® G3900 2.8 GHz, 2 cores (TC2, TC3: 50) |
| Motherboard | ATX motherboard for 6th/7th generation Intel® Celeron®, Pentium®, Core™ i3/i5/i7 |
| PCIe®/PCI™ slots | 2 x PCIe® x1, 2 x PCIe® x4, 1 x PCIe® x16, 2 x PCI™ for up to 190 mm long plug-in cards |
| Memory | 4 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | hard disk, 3½-inch, 1 TB |
| Disk drive | – |
| Interfaces | 4 x USB 3.0, 2 x DVI, 1 x DisplayPort, 1 x RS232, PS/2 keyboard and mouse |
| Power supply | 100…240 V AC |
| Operating system | – |
