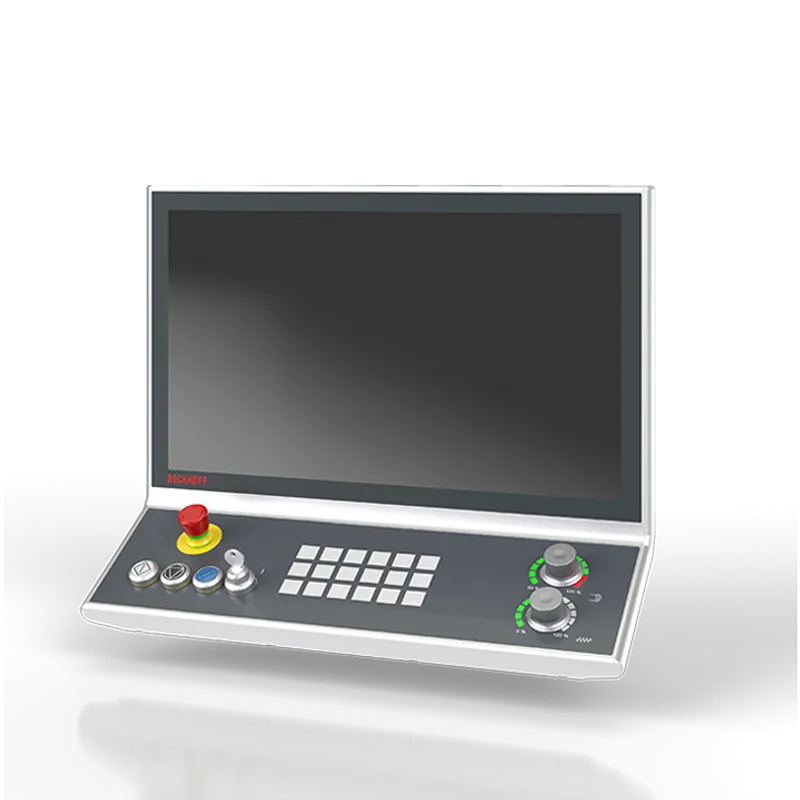

CNC multi-touch Control Panel in a special CNC function design with DVI/USB-Extended
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | CP39xx |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CP3921-1513-0000 be shipped?
CP3921-1513-0000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CP3921-1513-0000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CP3921-1513-0000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CP3921-1513-0000, subject to availability and destination.
The Control Panels in the CP39xx-151x-00x0 series, featuring an angled push-button extension in a special CNC function design, are control and operating devices specifically designed for CNC applications. In addition, the CP3921-1512-00x0 have an LED
Specifications
Specifications
| Device type | Multi-touch Control Panel with DVI/USB Extended interface |
| Housing | aluminum housing with glass front |
| Display size/resolution | 21.5-inch display 1920 x 1080 |
| Touch screen | multi-finger touch screen |
| Protection rating | IP65 |
| Connection technology | DVI-E and USB-E enables to connect the Control Panel at a distance of up to 50 m to the PC. The DVI-E input is compatible to the standard DVI output of a PC. USB-E 2.0 transmits USB 2.0 with 480 Mbit/s. |
| Mounting arm adapter | connection block with 4 M6 threaded holes each with a distance of 100 x 100 mm and 70 x 130 mm at the rear panel of the control panel |
| Interfaces | 1 x round connector IP65 M23 19-pin for power supply of the Control Panel and CNC extension 1 x USB-E 2.0 1 x DVI-E input |
| Operating temperature | 0…55°C |
