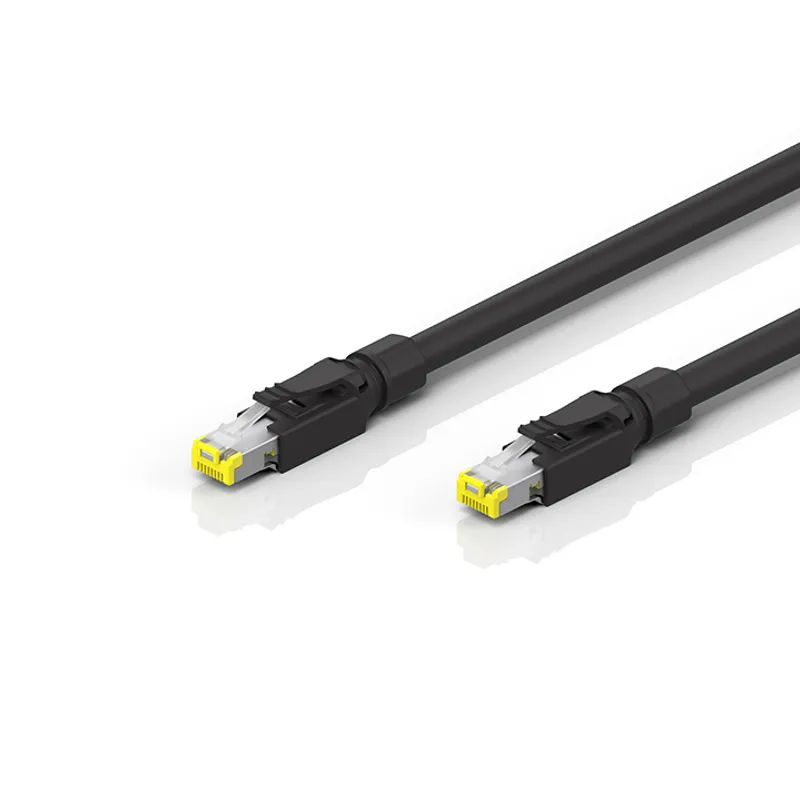

Beckhoff C9900-K713...K721,-K725,-K729,-K746 – CP-Link 4 cable, shielded, PUR, 4 x 2 x AWG24/7, drag-chain suitable, black, Cat.6A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can C9900-K713...K721,-K725,-K729,-K746 be shipped?
C9900-K713...K721,-K725,-K729,-K746 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up C9900-K713...K721,-K725,-K729,-K746 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for C9900-K713...K721,-K725,-K729,-K746 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for C9900-K713...K721,-K725,-K729,-K746, subject to availability and destination.
RJ45, plug, straight, IP20, 8-pin - RJ45, plug, straight, IP20
Specifications
Specifications
| Shielding | yes |
| Installation size | RJ45 |
| Connector type | plug |
| Contact type | male |
| Number of positions (face) | 8-pin |
| Rated current | 1.75 A |
| Rated voltage | 50 V AC/60 V DC |
| Mating cycles | ≥ 750 |
| Cross-section | 4 x 2 x AWG24 |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 8.9 mm |
| Min. bending radius, moved | 15 x outer cable diameter |
| Min. bending radius, fixed installation | 8 x outer cable diameter |
| Max. number of cycles | 1.25 million at max. 5 m travel distance |
| Jacket color | black |
| CE | yes |
| UL | yes, UL E-file number: E23660 |
