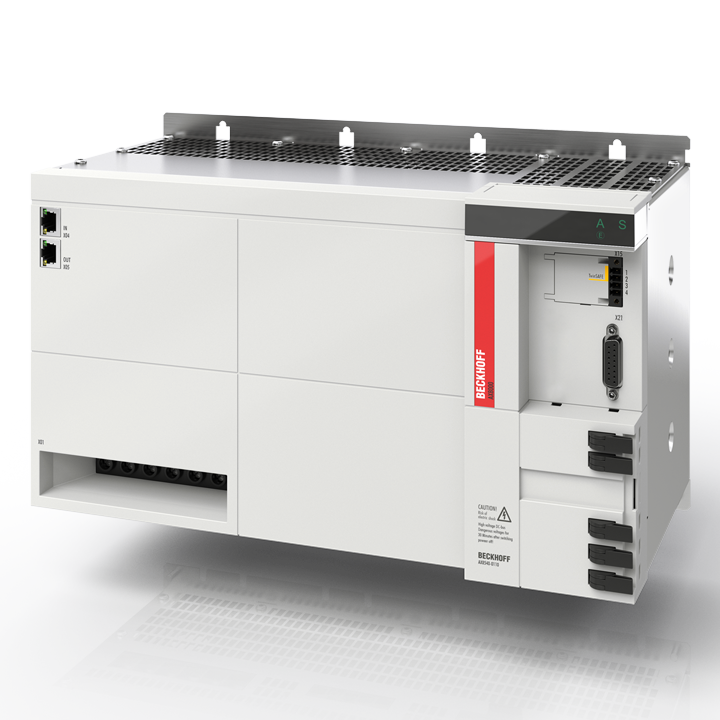

Combined power supply and axis module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | AX8525 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can AX8525-0120-0000 be shipped?
AX8525-0120-0000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AX8525-0120-0000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AX8525-0120-0000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AX8525-0120-0000, subject to availability and destination.
The AX8525 and AX8540 combined power supply and axis modules unite the function of an AX86xx power supply module with an AX81xx axis module in a single device. As a result, the AX-Bridge is not loaded by the axis current of the first axis and up to
Specifications
Specifications
| Function | combined power supply and axis module with TwinSAFE Logic and multi-feedback interface |
| Channels | 1 |
| Rated supply voltage | 3 x 200…480 V AC |
| DC link voltage | max. 848 V DC |
| DC link output current | 80 A DC |
| Rated output current (channel) | 25 A |
| Peak output current (channel) | 50 A |
| Feedback | OCT, EnDat® 3, BiSS® C, EnDat® 2.2/22, DIFF RS422, TTL, SinCos 1 VPP |
| System bus | EtherCAT |
| Drive profile | CiA402 according to IEC 61800-7-201 (CoE) |
| Realization STO | by local TwinSAFE Logic, via FSoE or hard-wired via safe inputs |
| Safe stop functions | Safe Torque Off (STO), Safe Stop 1 (SS1) |
| Safety standard | EN ISO 13849-1:2015 (Cat 4, PL e), EN 61508:2010 (SIL 3) and EN 62061:2005 + A1:2013/A2:2015 (SIL CL3) |
| Ambient temperature (operation) | 0…40°C, up to 55°C with power reduction (see documentation) |
| Approvals/markings | CE, cULus |
| Protection rating | IP20 |
| Width | 360 mm |
| Height without connectors | 230 mm |
| Depth without connectors | 192 mm |
