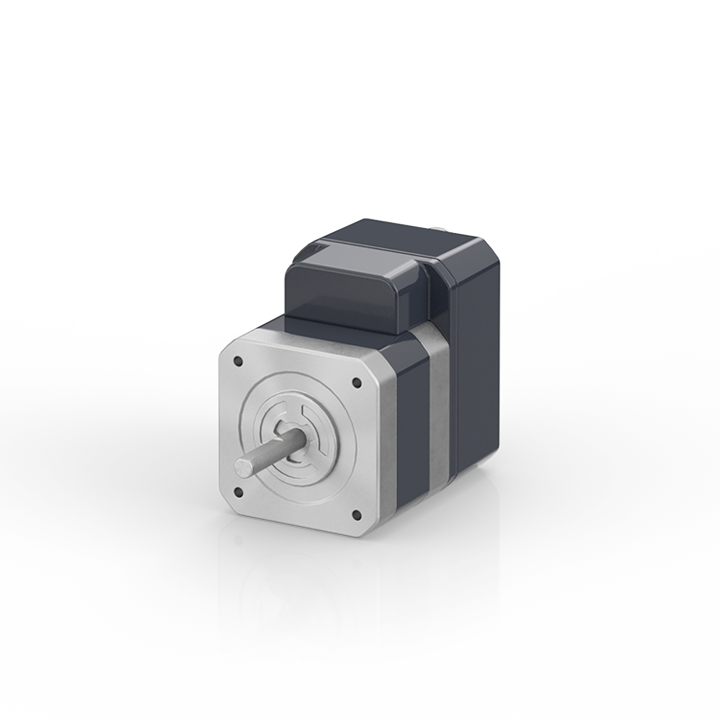

Compact integrated stepper motor drive 0.29 Nm (MH), N1 (NEMA17/42 mm)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ASI8111 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ASI8111-abcc-w1yz be shipped?
ASI8111-abcc-w1yz is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ASI8111-abcc-w1yz in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ASI8111-abcc-w1yz and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ASI8111-abcc-w1yz, subject to availability and destination.
The integrated ASI8111 stepper motor drive combines stepper motor, output stage and fieldbus connection in a space-saving design in the voltage range of up to 48 V DC. It is suitable for all motion requirements in the power range up to 250 W. The
Specifications
Specifications
| Motor type | stepper motor, 2-phase, step angle 1.8°, with integrated stepper motor drive |
| Motor feedback | single-turn encoder, magnetic, resolution 16 bit |
| Nominal voltage | 24…48 V DC |
| Rated current | 1 A |
| Holding torque | 0.29 Nm |
| Rotor moment of inertia | 0.031 kgcm² |
| System bus | EtherCAT |
| Drive profile | MDP profile, DS402 profile |
| Connection technology | M12, L-coded/M8, screw type, 3-pin, A-coded/M8, screw type, 4-pin, A-coded |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE |
| Protection rating | IP43 |
| Design form | flange-mounted according to IM B14, IM V18, IM V19 |
| Material | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| a | 22 mm |
| b | 5 mm |
| d | 24 mm |
| r | 42 mm |
| k (without brake) | 58 mm |
