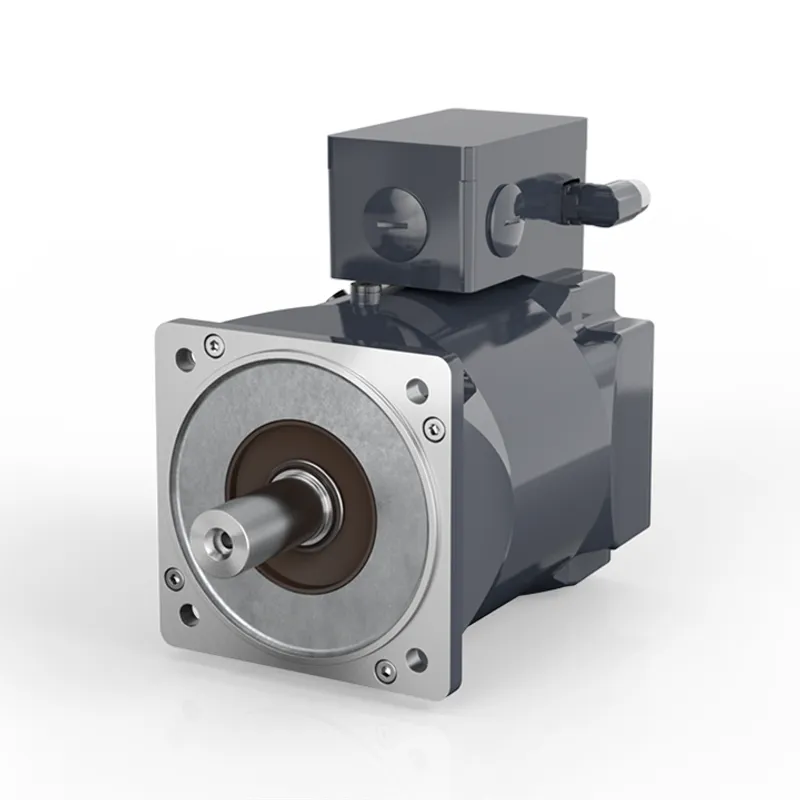

Servomotor with water cooling 194 Nm (M0), F7 (194 mm)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | AM8373 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can AM8373-wUyz be shipped?
AM8373-wUyz is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AM8373-wUyz in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AM8373-wUyz and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AM8373-wUyz, subject to availability and destination.
The AM8373 water-cooled servomotor is suitable for drive solutions with highest demands on dynamics and performance in the 100…480 V AC voltage range. The standstill torque of the motor is 190 Nm. The water-cooled servomotor with flange code F7 (194 mm)
Specifications
Specifications
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100…480 V AC |
| Standstill torque | 194 Nm |
| Rated torque | 183 Nm |
| Peak torque | 275 Nm |
| Rated speed | 1500 min-1 |
| Rated power | 28.7 kW |
| Standstill current | 72.1 A |
| Peak current | 97.4 A |
| Torque constant | 2.69 Nm/A |
| Rotor moment of inertia | 135 kgcm² |
| Motor feedback | resolver, single-turn absolute encoder HIPERFACE®, multi-turn absolute encoder |
| Cooling | water cooling |
| Connection technology | terminal box |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus in preparation |
| Protection rating | IP54, IP65 (shaft seal) |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| k (without brake) | 326 mm |
| k (with brake) | 398.5 mm |
