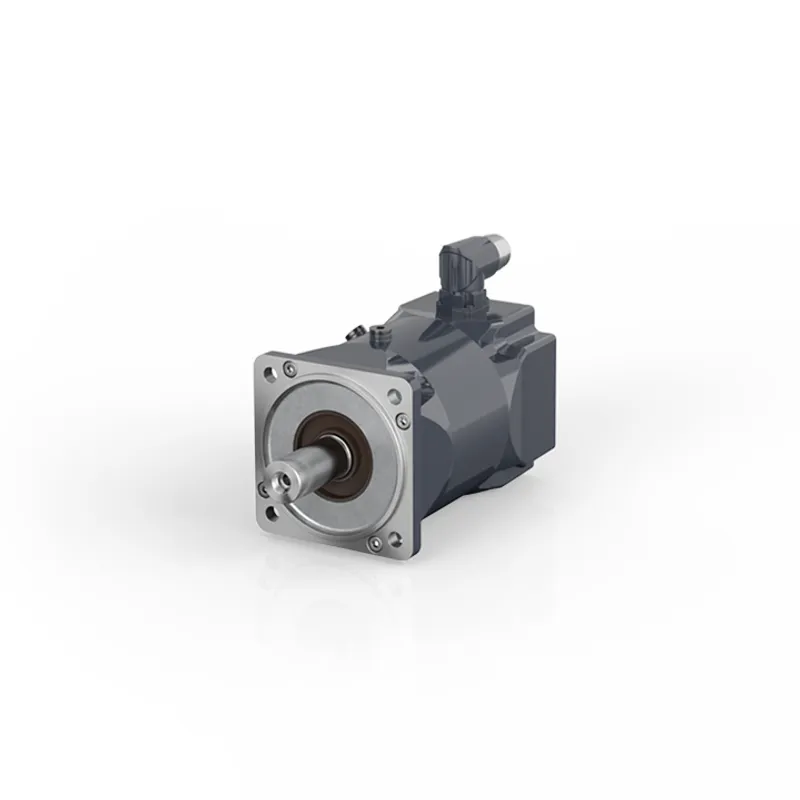

Servomotor with water cooling 33.1 Nm (M0), F5 (104 mm)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | AM8354 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can AM8354-wTyz be shipped?
AM8354-wTyz is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AM8354-wTyz in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AM8354-wTyz and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AM8354-wTyz, subject to availability and destination.
The AM8354 water-cooled servomotor is suitable for drive solutions with highest demands on dynamics and performance in the 100…480 V AC voltage range. The standstill torque of the motor depends on the winding and is in the range of 33.10…38.40 Nm. It is
Specifications
Specifications
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100…480 V AC |
| Standstill torque | 33.1 Nm |
| Rated torque | 29.5 Nm |
| Peak torque | 70.5 Nm |
| Rated speed | 6500 min-1 |
| Rated power | 20.1 kW |
| Standstill current | 42.2 A |
| Peak current | 117 A |
| Torque constant | 0.784 Nm/A |
| Rotor moment of inertia | 7.86 kgcm² |
| Motor feedback | resolver, single-turn absolute encoder HIPERFACE®, multi-turn absolute encoder OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate, B/SSD |
| Cooling | water cooling |
| Connection technology | M40 speedtec® plug |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus in preparation |
| Protection rating | IP54, IP65 (shaft seal) |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| k (without brake) | 235.5 mm |
| k (with brake) | 284.5 mm |
