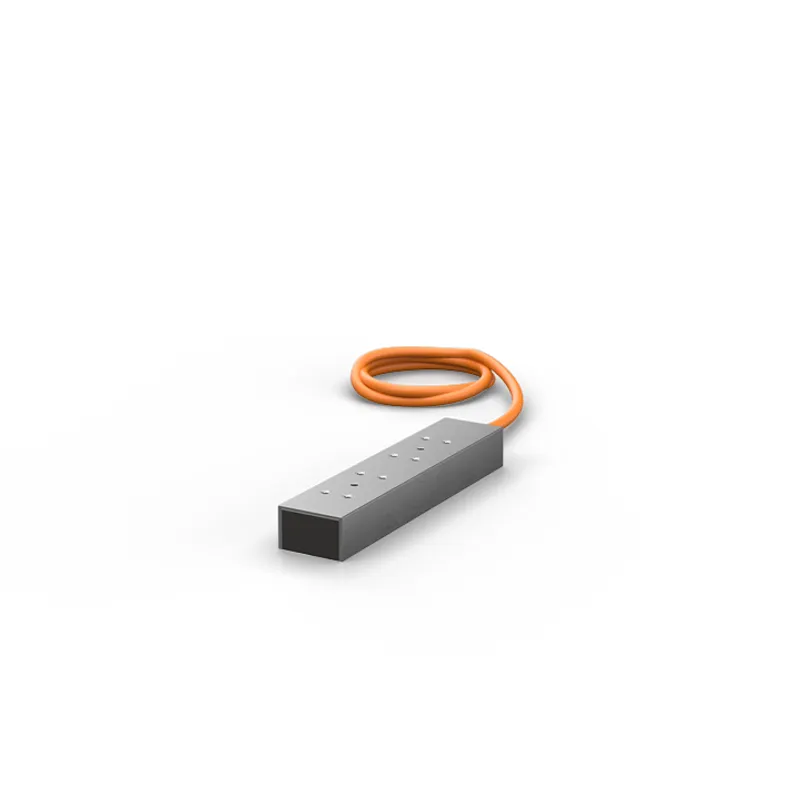

Linear servomotor, 480 N (Fmax), convection
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | AL8024 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can AL8024-0Gyz-0000 be shipped?
AL8024-0Gyz-0000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AL8024-0Gyz-0000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AL8024-0Gyz-0000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AL8024-0Gyz-0000, subject to availability and destination.
The AL8024 linear servomotor is suitable for highly dynamic and powerful linear axes with a pole pair distance of 24 mm. The optimized product design and the modular coil concept enable maximum force density in the smallest mounting space. The length of
Specifications
Specifications
| Motor type | 3-phase synchronous linear servomotors |
| Nominal voltage | 100…480 V AC |
| Max. speed | 12 m/s |
| Peak force | 480 N |
| Continuous force | 240 N |
| Peak current | 12 A |
| Continuous current | 4.8 A |
| Force constant | 50 N/A |
| Cooling | convection |
| Connection technology | itec® plug |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus |
| Protection rating | IP64 |
| Overall width | W2 (50 mm) |
| Material | aluminum |
| b | 51 mm |
| la | 239 mm |
| h | 40 mm |
