Available on request
56M 4P TEFC VER 284LP IEEE841 32-8
MPN: VLECP84103T-4 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | IEEE 841XL Vertical P-base |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VLECP84103T-4 be shipped?
VLECP84103T-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VLECP84103T-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VLECP84103T-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VLECP84103T-4, subject to availability and destination.

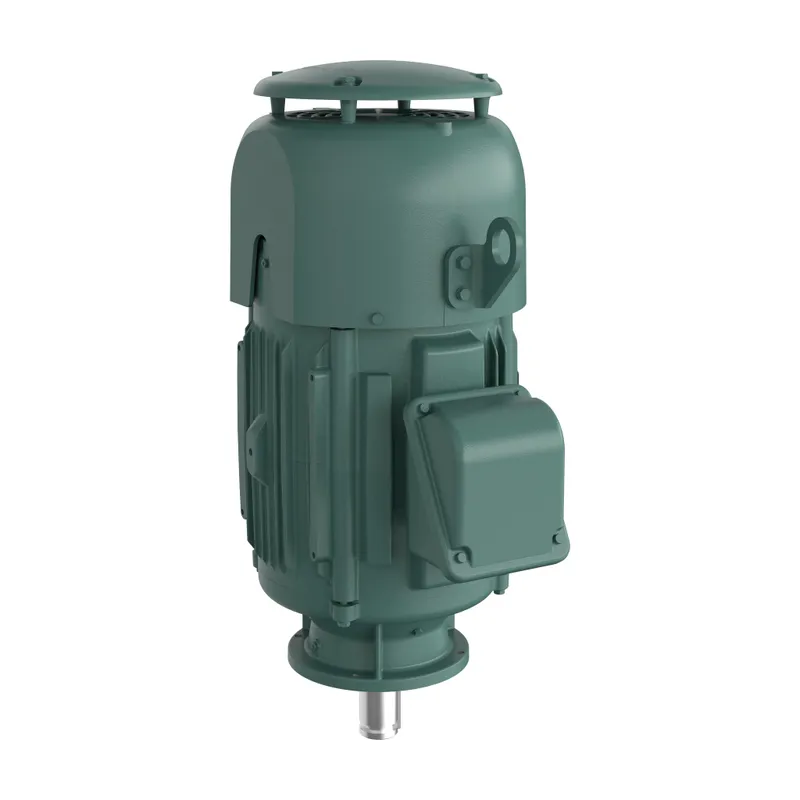

Pump Motor 25 Hp 460 V (VLECP84103T-4)
Specifications
Ordering
| Catalog Number | VLECP84103T-4 |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015230 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 85 % |
| Rated Efficiency | 93.60 % |
| Service Factor | 1.15 |
| Temperature Class | T3C |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 25 Hp |
Mechanical
| Drive End Flange Type | P-Base |
| Enclosure Type | TEFC |
| Explosion Proof Group Class | Class I, Group A, B, C & D A |
| Frame Material | Cast Iron |
| Motor Frame Size | 284LP |
| Motor Base Type | No Mounting |
| Mounting Position | V1 |
| Brake Present | No |
Dimensions
| Product Net Height | 28.25 in |
| Product Net Weight | 437 lb |
| Product Net Width | 33.5 in |
| Dimension Diagram | 10LYK389 |
Certificates and Declarations
| Certification Agency | CCSA US, CSA EEV, NEMA_PREMIUM, UR |
| ETIM 7 | EC001851 - Electric motor |
