Home / ABB / MOTOR,10,1800,SD100 IEEE,575,215TC
Available on request

MOTOR,10,1800,SD100 IEEE,575,215TC

MPN: 1LE24212AB213GA3 · Brand: ABB
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategorySD100 IEEE 841
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 1LE24212AB213GA3 be shipped?

1LE24212AB213GA3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1LE24212AB213GA3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1LE24212AB213GA3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1LE24212AB213GA3, subject to availability and destination.

Severe Duty Motor 10 Hp 575 V (1LE24212AB213GA3)

Specifications

Ordering

Catalog Number1LE24212AB213GA3
Brand / LabelABB NEMA Motors
Country or Territory of OriginMexico
Customs Tariff Number8501520400
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of Speedssingle_speed
Power Factor81.7 %
Rated Efficiency91.7 %
Service Factor1.15
Temperature ClassT3
Type of DutyContinuous
Starting of MotorDirect on line
Synchronous Speed (vsyn)1800 r/min
Output Power10 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group A, B, C & D, Class II, Group F & G A
Frame MaterialCast_Iron
Motor Frame Size215TC
Motor Base TypeFootless
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height0 in
Product Net Weight89 lb
Product Net Width0 in
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide

More ABB parts

MOTOR,10,1800,SD100 IEEE,460,215T,NAvailable on requestMOTOR,10,1800,SD100 IEEE,460,215T,N
MPN: 1LE24212AB212AA3 · ABB
Price on request
Request a quote

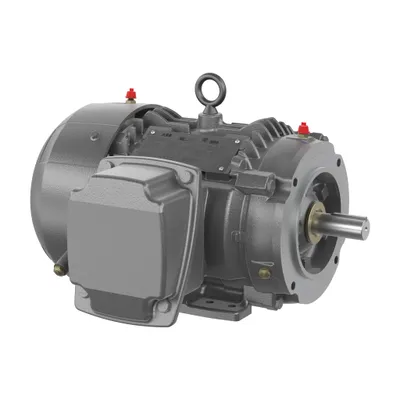

MOTOR,10,1800,SD100 IEEE841,460,215Available on requestMOTOR,10,1800,SD100 IEEE841,460,215
MPN: 1LE24212AB212EA3 · ABB
Price on request
Request a quote
MOTOR,10,1800,SD100 IEEE841,460,215Available on requestMOTOR,10,1800,SD100 IEEE841,460,215
MPN: 1LE24212AB212GA3 · ABB
Price on request
Request a quote
MOTOR,10,1800,SD100 IEEE841,575,215Available on requestMOTOR,10,1800,SD100 IEEE841,575,215
MPN: 1LE24212AB213AA3 · ABB
Price on request
Request a quote
MOTOR,3,1200,SD100 IEEE,460,213T,NPAvailable on requestMOTOR,3,1200,SD100 IEEE,460,213T,NP
MPN: 1LE24212AC112AA3 · ABB
Price on request
Request a quote

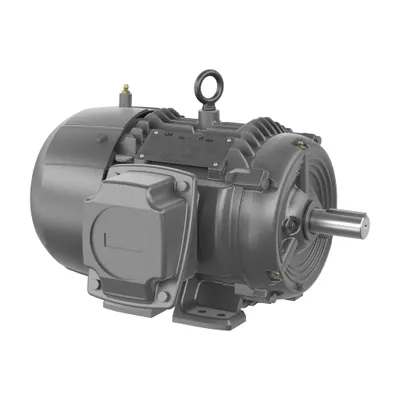

MOTOR,3,1200,SD100IEEE,575,213T,NPAvailable on requestMOTOR,3,1200,SD100IEEE,575,213T,NP
