Available on request

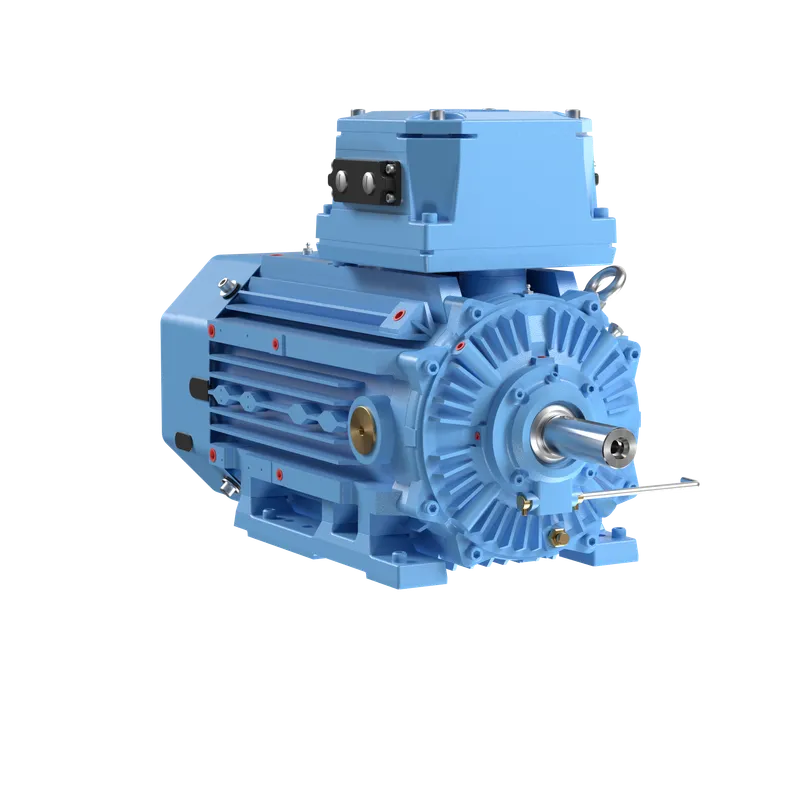

M3KP 160MLC 2
MPN: 3GKP161430-BFH · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Flameproof IEC Low voltage motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 233 kg |
Shipping & availability
When can 3GKP161430-BFH be shipped?
3GKP161430-BFH is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GKP161430-BFH in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GKP161430-BFH and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GKP161430-BFH, subject to availability and destination.
(3GKP161430-BFH)
Specifications
Ordering
| ABB Type Designation | M3KP 160MLC 2 |
| Invoice Description | M3KP 160MLC 2 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3KP2__M3KP_IE2_Flameproof_Ex_db_eb_motor |
| Country or Territory of Origin | Finland |
| Customs Tariff Number | 85015230 |
Electrical
| Temperature Class Default | T4 |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE2, Full Load (100%) 91.0 %, Partial Load (75%) 92.0 %, Partial Load (50%) 91.0 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Number of Poles (High) | 2 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | F |
| EX-Protection | Exde |
| Gas Group | IIB |
Mechanical
| Frame Material | Cast Iron |
| Frame Size | 160 |
| Bearing | 6309/C3 |
| Bearing NDE | 6309/C3 |
| IM Class | IMB5 IM3001 |
Dimensions
| Product Net Weight | 233 kg kg |
| Gross Weight | 243 kg kg |
Environmental
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
External Classifications and Standards
| UNSPSC | 26101100 |
