Available on request

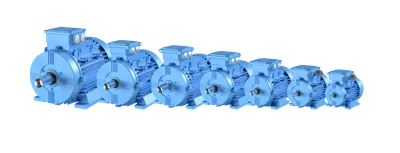

M2VAM 63MF 4
MPN: 3GVA062360-HSR · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Flameproof IEC Low voltage motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 5.7 kg |
Shipping & availability
When can 3GVA062360-HSR be shipped?
3GVA062360-HSR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GVA062360-HSR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GVA062360-HSR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GVA062360-HSR, subject to availability and destination.
(3GVA062360-HSR)
Specifications
Ordering
| ABB Type Designation | M2VAM 63MF 4 |
| Invoice Description | M2VAM 63MF 4 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | MVA2__M2VAM_IE2_AA |
| Country or Territory of Origin | China |
| Customs Tariff Number | 85015100 |
Electrical
| Temperature Class Default | -- |
| Altitude | 1000 m m |
| Ambient Temperature | 50 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE2, Full Load (100%) 68.5 %, Partial Load (75%) 68.6 %, Partial Load (50%) 65.3 % |
| IE Class Data (60 Hz) | IE Class IE2, Full Load (100%) 70.0 %, Partial Load (75%) 70.1 %, Partial Load (50%) 66.9 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 4 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | S |
Mechanical
| Frame Material | Aluminum |
| Frame Size | 63 |
| Bearing | 6201-2Z/C3 |
| Bearing NDE | 6201-2Z/C3 |
| IM Class | IMB35 IM2001 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Weight | 5.7 kg kg |
| Gross Weight | 6.7 kg kg |
Environmental
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
External Classifications and Standards
| UNSPSC | 26101100 |
