Available on request

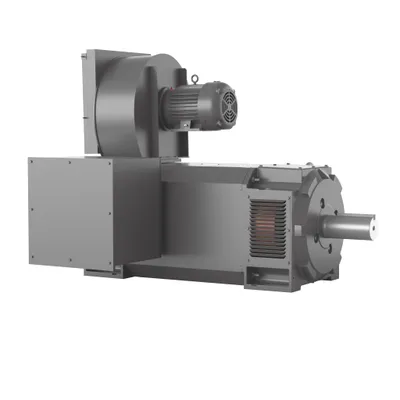

800HP,1750,460V,RL4440,DPFV,F1
MPN: IDDRPM448004 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can IDDRPM448004 be shipped?
IDDRPM448004 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up IDDRPM448004 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for IDDRPM448004 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IDDRPM448004, subject to availability and destination.
800HP,1750,460V,RL4440,DPFV,F1
Specifications
Additional Information
| ABB Type Designation | 800HP,1750,460V,RL4440,DPFV,F1 |
| Ambient Temperature | 40 °C |
| Base Speed | 1800 r/min |
| Bearing | 110BC02J30X, Ball |
| Bearing NDE | 6222/C3VL0241 |
| Brake Present | No |
| Brand / Label | Baldor-Reliance® |
| Catalog Number | IDDRPM448004 |
| Certification Agency | CCSA US |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015381 |
| Drive End Flange Type | Standard |
| Electrical Data 1 | Current 1002 A, Frequency 90 Hz, Power 800 Hp, 1750 r/min, Voltage 460 V A |
| Enclosure Type | DPFV |
| Frame Material | Exposed_Laminations |
| Frame Size | Undefined |
| Global Commercial Alias | IDDRPM448004 |
| Gross Weight | 3408 lb |
| Insulation Class | H |
| Invoice Description | 800HP,1750,460V,RL4440,DPFV,F1 |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Motor Base Type | Foot Mounted |
| Motor Frame Size | RL4440Z |
| Mounting Orientation | Horizontal |
| Mounting Position | F1 |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Poles (High) | 4 |
| Order Multiple | 1 piece |
| Output Power | 800 Hp |
| Product Name | AC VS Laminated Frame - RPMAC |
| Product Net Depth / Length | 0 in |
| Product Net Height | 0 in |
| Product Net Weight | 3408 lb |
| Product Net Width | 0 in |
| Product Type | Undefined |
| Quote Only | No |
| Rated Current (In) | 1002 A A |
| Rated Speed | 1750 r/min |
| Replaced Product ID (OLD) | 7BR44-A000-0223 |
| Selling Unit of Measure | piece |
| Service Factor | 1.00 |
| Shaft Diameter | 4.25 in |
| Standards | NEMA |
| Starting of Motor | Full Voltage |
| Stocked At (Warehouses) | China, Fort Smith, Arkansas, United States, Alaska, United States |
| Synchronous Speed (vsyn) | 1800 r/min |
| Type of Duty | Continuous |
| Voltage Code | 460 |
| Voltage Rating | 460 V V |
