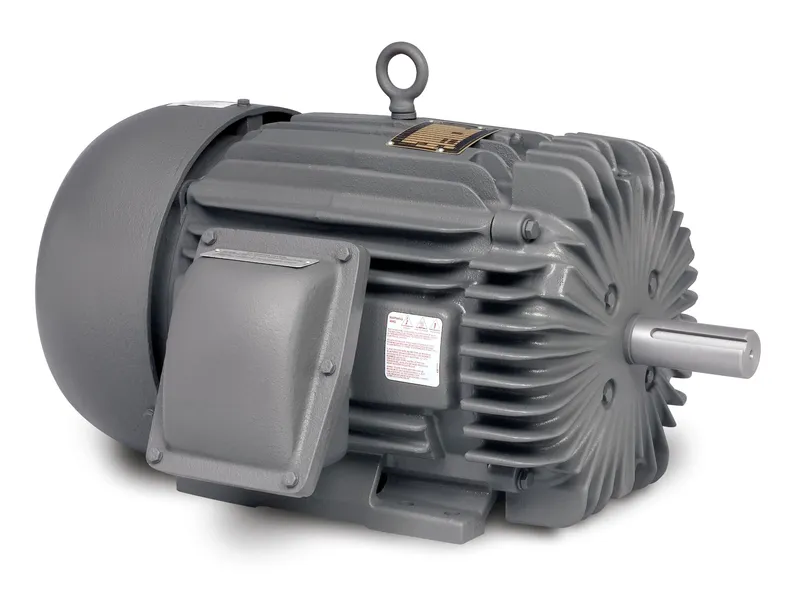

30//25HP,3520//2920RPM,3PH,60//50HZ

Name: 30//25HP,3520//2920RPM,3PH,60//50HZ
Brand: ABB
SKU: EM7083T

MPN: EM7083T · Brand: ABB

Price on request

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can EM7083T be shipped?

EM7083T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EM7083T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EM7083T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM7083T, subject to availability and destination.

25.000 hp, 30.000 hp, 3520//2920 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 286TS, F1

Specifications

Additional Information

ABB Type Designation	30//25HP,3520//2920RPM,3PH,60//50HZ
Ambient Temperature	40 °C
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	EM7083T
Certification Agency	CSA, CSA EEV, UR
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Design	B
Dimension Diagram	10LYE128
Efficiency Level	Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Enclosure Type	XPFC
ETIM 7	EC001851 - Electric motor
Explosion Proof Group Class	CLI GP D, CLII GP F,G G
Explosion Protection	Explosion-proof
Frame Material	Iron
Frame Size	Undefined
Frequency (f)	50 Hz, 60 Hz Hz
Global Commercial Alias	EM7083T
Gross Weight	239.712 kg kg
Horsepower Rating UL/CSA	25.000 Hp, 30.000 Hp
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
Insulation Class	F
Invoice Description	25.000 hp, 30.000 hp, 3520//2920 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 286TS, F1 V
Made To Order	No
Marketing Description	25.000 hp, 30.000 hp, 3520//2920 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 286TS, F1 V
Minimum Order Quantity	0.000 piece
Motor Base Type	Rigid
Motor Frame Size	286TS
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Order Multiple	0.000 piece
Power Factor	90 %
Product Name	-
Product Net Depth / Length	27.24 in
Product Net Weight	239.712 kg kg
Quote Only	No
Rated Current (In)	66 A, 33 A, 68 A, 34 A A
Rated Efficiency	91.7 %
Rated Speed	3,520 r/min, 2,920 r/min
RoHS Declaration	RoHS Compliant
Selling Unit of Measure	piece
Service Factor	1.00
Service Factor Percentage	1.00 %
Shaft Diameter	1.625 in
Standards	NEMA
Starting of Motor	Direct On Line
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Temperature Class	T3C
Type of Duty	CONT
UNSPSC	26101112
Voltage Rating	460 V, 380 V, 230 V, 190 V V
