Home / ABB / 75HP,1780RPM,3PH,60HZ,365T,XPFC,F1
Available on request

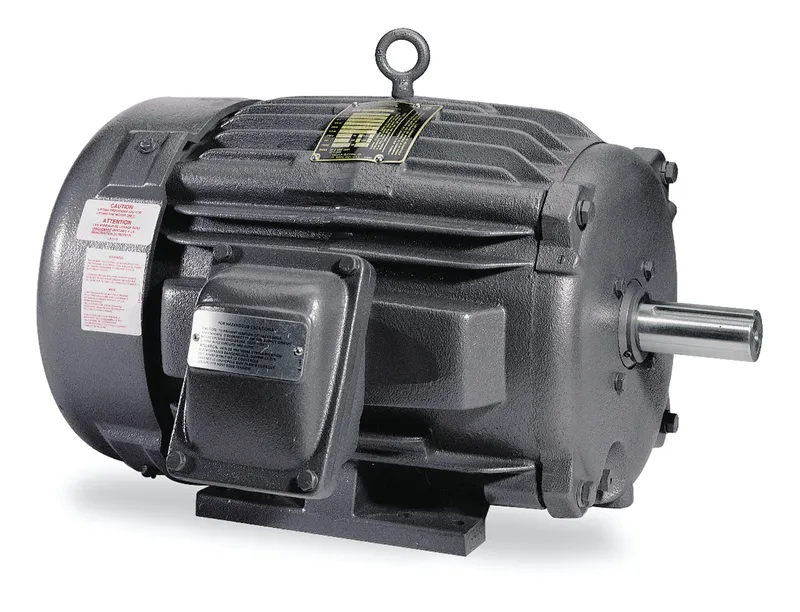

ABB EM7068T – 75HP,1780RPM,3PH,60HZ,365T,XPFC,F1

MPN: EM7068T · Brand: ABB
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryXP severe duty
LifecycleActive
Warranty12-month (new) · 3-month (used/refurbished)
Weight482.6 kg

Shipping & availability

When can EM7068T be shipped?

EM7068T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EM7068T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EM7068T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM7068T, subject to availability and destination.

General Purpose Industrial Motors 460 V (EM7068T)

Specifications

Ordering

Catalog NumberEM7068T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity0.000 piece
Order Multiple0.000 piece

Electrical

Ambient Temperature40 °C
Efficiency LevelEnergy Efficiency (NEMA 12-11)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor88 %
Rated Efficiency95.4 %
Temperature ClassT4
Type of DutyCONT
Starting of MotorDirect On Line

Mechanical

Enclosure TypeTEFC
Explosion Proof Group ClassCLI GP C,D, CLII GP F,G G
Frame MaterialIron
Motor Frame SizeX365T
Motor Base TypeRigid
Brake PresentNo

Dimensions

Product Net Weight482.602 kg kg
Dimension Diagram611742-675-SH1

Certificates and Declarations

Certification AgencyCCSA US, CSA, CSA EEV, UL
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor
