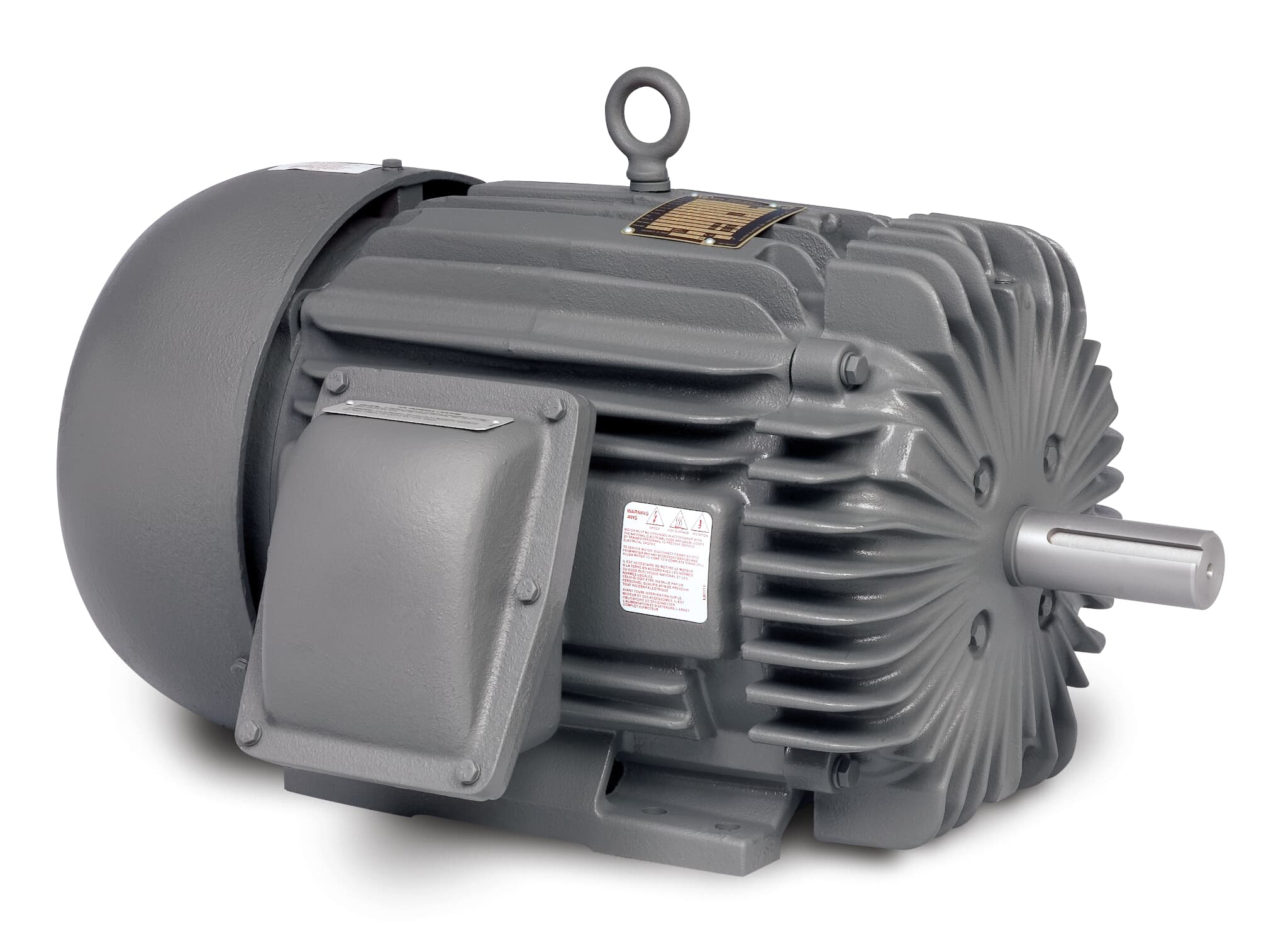

30//25HP,1770//1470RPM,3PH,60//50HZ

Name: 30//25HP,1770//1470RPM,3PH,60//50HZ
Brand: ABB
SKU: EM7060T

MPN: EM7060T · Brand: ABB

Price on request

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can EM7060T be shipped?

EM7060T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EM7060T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EM7060T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM7060T, subject to availability and destination.

25.000 hp, 30.000 hp, 1770//1470 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 286T, F1

Specifications

Additional Information

ABB Type Designation	30//25HP,1770//1470RPM,3PH,60//50HZ
Ambient Temperature	40 °C
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	EM7060T
Certification Agency	CSA, CSA EEV, UL, UR
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Design	B
Dimension Diagram	10LYE106
Efficiency Level	Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Enclosure Type	XPFC
ETIM 7	EC001851 - Electric motor
Explosion Proof Group Class	CLI GP D, CLII GP F,G G
Explosion Protection	Explosion-proof
Frame Material	Iron
Frame Size	Undefined
Frequency (f)	50 Hz, 60 Hz Hz
Global Commercial Alias	EM7060T
Gross Weight	312.806 kg kg
Horsepower Rating UL/CSA	25.000 Hp, 30.000 Hp
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
Insulation Class	F
Invoice Description	25.000 hp, 30.000 hp, 1770//1470 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 286T, F1 V
Made To Order	No
Marketing Description	25.000 hp, 30.000 hp, 1770//1470 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 286T, F1 V
Minimum Order Quantity	0.000 piece
Motor Base Type	Rigid
Motor Frame Size	286T
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Order Multiple	0.000 piece
Power Factor	83 %
Product Name	Explosion Proof Motors
Product Net Depth / Length	28.61 in
Product Net Weight	312.806 kg kg
Quote Only	No
Rated Current (In)	72 A, 36 A, 74 A, 37 A A
Rated Efficiency	93.6 %
Rated Speed	1,770 r/min, 1,470 r/min
Selling Unit of Measure	piece
Service Factor Percentage	1.00 %
Shaft Diameter	1.875 in
Standards	NEMA
Starting of Motor	Direct On Line
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Temperature Class	T3C
Type of Duty	CONT
UNSPSC	26101115
Voltage Rating	460 V, 380 V, 230 V, 190 V V
