2.2KW,1800RPM,3PH,50HZ,D90S,3532B,T

Name: 2.2KW,1800RPM,3PH,50HZ,D90S,3532B,T
Brand: ABB
SKU: ECS101M0K2P2DF4

MPN: ECS101M0K2P2DF4 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	EC Titanium™ (General Purpose SP5+)
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can ECS101M0K2P2DF4 be shipped?

ECS101M0K2P2DF4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ECS101M0K2P2DF4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ECS101M0K2P2DF4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECS101M0K2P2DF4, subject to availability and destination.

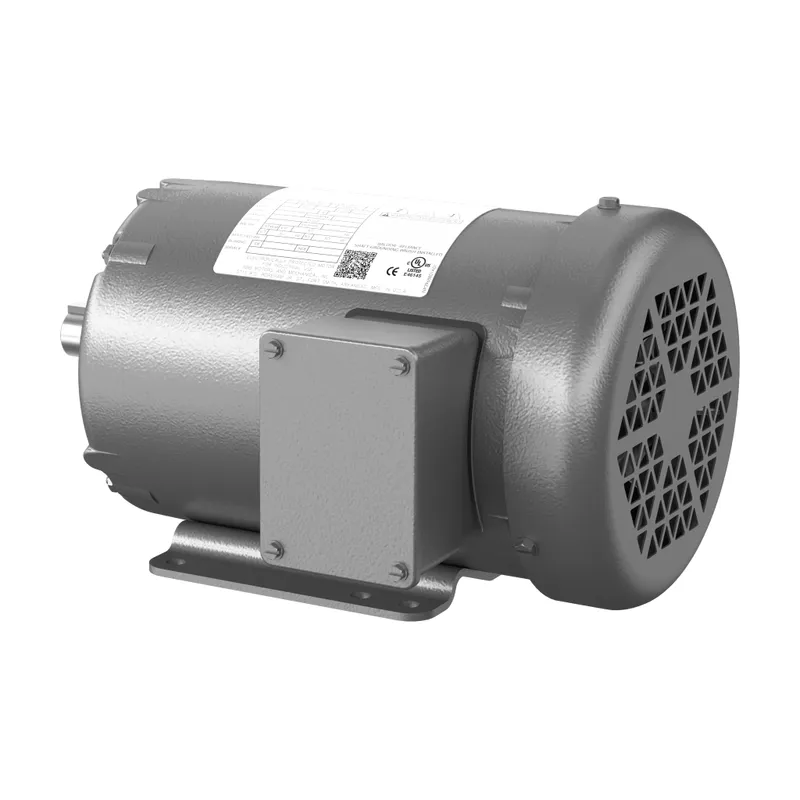

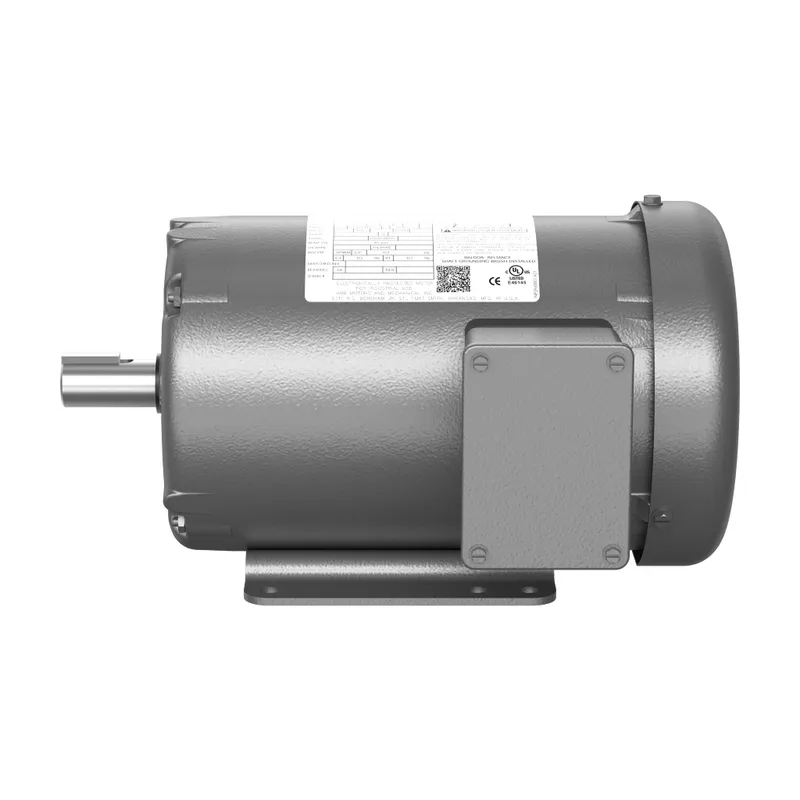

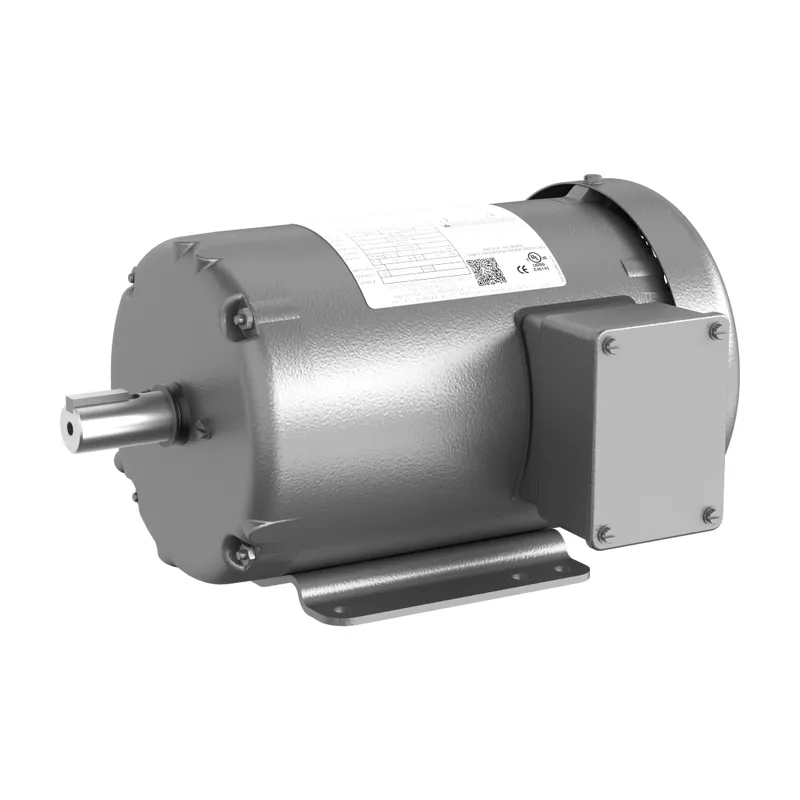

Baldor IEC Motors 2.2 kW 190 V (ECS101M0K2P2DF4)

Specifications

Ordering

Catalog Number	ECS101M0K2P2DF4
Brand / Label	Baldor-Reliance®
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	IE5
Insulation Class	F
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	single_speed
Power Factor	99 %
Rated Efficiency	91.10 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	1500 r/min
Output Power	2.2 kW kW
