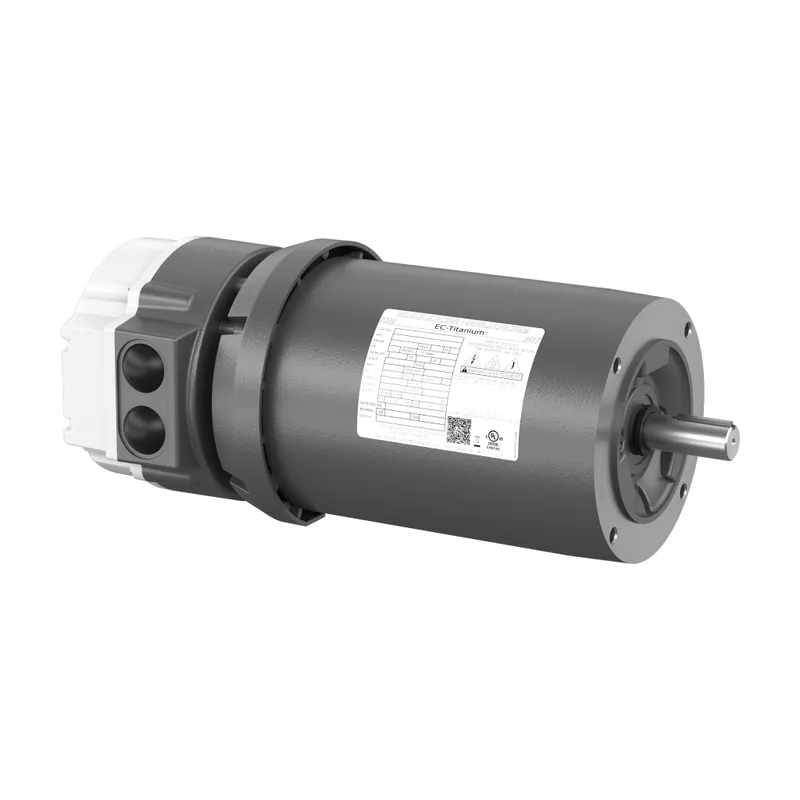

1HP,1800RPM,3PH,60HZ,143TC,3516B,TE

Name: 1HP,1800RPM,3PH,60HZ,143TC,3516B,TE
Brand: ABB
SKU: ECS100A4H1DC4

MPN: ECS100A4H1DC4 · Brand: ABB

Price on request

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	EC Titanium™ (General Purpose SP5+)
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can ECS100A4H1DC4 be shipped?

ECS100A4H1DC4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ECS100A4H1DC4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ECS100A4H1DC4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECS100A4H1DC4, subject to availability and destination.

ECM IMD 1 Hp 460 V (ECS100A4H1DC4)

Specifications

Ordering

Catalog Number	ECS100A4H1DC4
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	IE5
Insulation Class	F
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	97 %
Rated Efficiency	89.30 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	1 Hp
