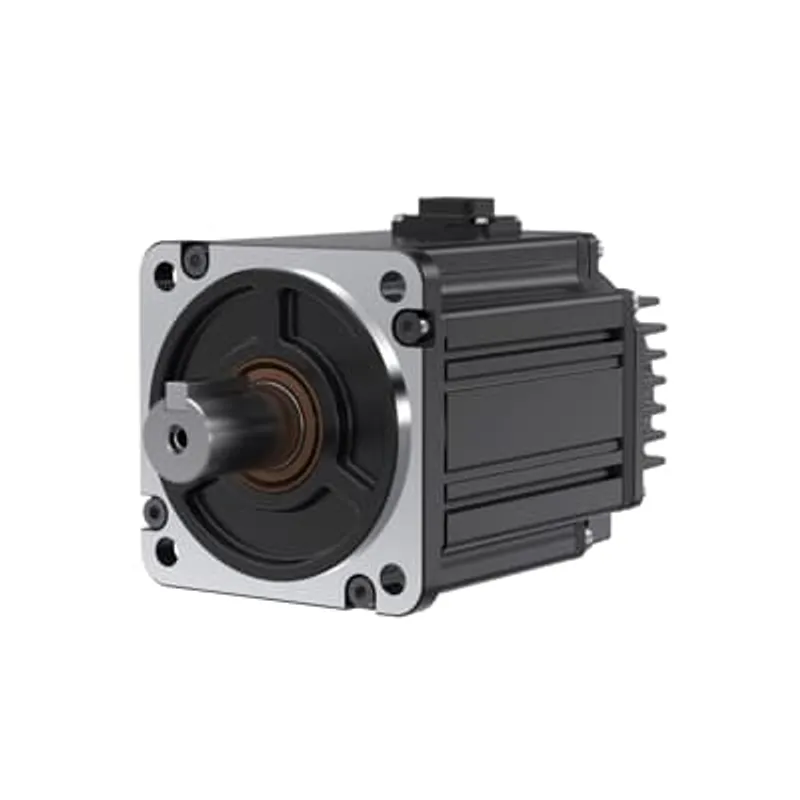

ABB DSM08L-0KW8-302-T0NB1

Name: ABB DSM08L-0KW8-302-T0NB1
Brand: ABB
SKU: DSM08L-0KW8-302-T0NB1

MPN: DSM08L-0KW8-302-T0NB1 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	DSM servo motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	2.3 kg

Shipping & availability

When can DSM08L-0KW8-302-T0NB1 be shipped?

DSM08L-0KW8-302-T0NB1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DSM08L-0KW8-302-T0NB1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DSM08L-0KW8-302-T0NB1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DSM08L-0KW8-302-T0NB1, subject to availability and destination.

The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.

Specifications

Customs Tariff Number	8501520090
HS Code	850152 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electric motors and generators (excluding generating sets);Other AC motors, multi-phase;Of an output exceeding 750\|W but not exceeding 75\|kW
Invoice Description	DSM series motor, 220 VAC, flange size 80 mm, low inertia, 0.75 kW, 23-bit SmartAbs MT, no brake, key, seal
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Product Net Weight	2.3 kg
Product Net Depth / Length	149 mm
Product Net Height	105.3 mm
Product Net Width	80 mm
Package Level 1 Depth / Length	216 mm
Package Level 1 Height	153 mm
Package Level 1 Width	150 mm
Package Level 1 Units	1 carton
Number of Phases	3-phase
Degree of Protection	IP67
Input Voltage (Uin)	220 V
