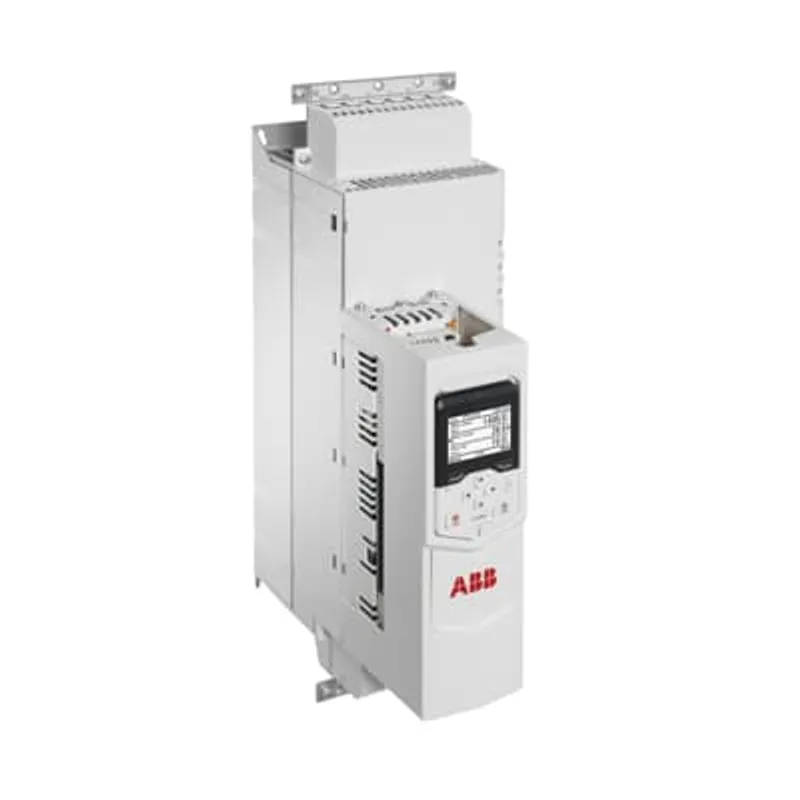

ABB ACS880-M04-044A-2

Name: ABB ACS880-M04-044A-2
Brand: ABB
SKU: ACS880-M04-044A-2

MPN: ACS880-M04-044A-2 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Machinery Drive
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	15.8 kg

Shipping & availability

When can ACS880-M04-044A-2 be shipped?

ACS880-M04-044A-2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ACS880-M04-044A-2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ACS880-M04-044A-2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS880-M04-044A-2, subject to availability and destination.

LV AC machinery drive module, IEC: Pn 11 kW, 44 A, 230 V, UL: Pld 15 Hp, 41 A, 230 V (ACS880-M04-044A-2)

Specifications

Customs Tariff Number	85044086
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS880-M04-044A-2 PN: 11 kW, IN: 44 A
Made To Order	Yes
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Product Net Weight	15.8 kg, 34.8 lb
Product Net Depth / Length	235 mm, 9.25 in
Product Net Height	658 mm, 25.91 in
Product Net Width	165 mm, 6.50 in
Package Level 1 Depth / Length	700 mm, 27.56 in
Package Level 1 Height	360 mm, 14.17 in
Package Level 1 Width	260 mm, 10.24 in
Package Level 1 Units	1 carton
Number of Phases	3-phase
Degree of Protection	IP20
Enclosure Type NEMA	Open Type
Altitude	1000 m
Operating Humidity (RHamb)	5 ... 95
Power Factor	0.98
Sound dB (A)	71 dB(A)
Multiple Battery Information	Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g
Frequency (f)	47.5 ... 63 Hz
Frame Size	R3
Input Voltage (Uin)	200 ... 240 V
Mounting Type	Module
Communication Protocol	CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP
Number of Hardware Interfaces	Industrial Ethernet 0, Other 3, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 0
Includes	PC connection
Analog Inputs	2
Analog Outputs	2
Number of Digital In/Outputs	6 / 5
Output Current, Normal Use (In)	44 A
Output Current, Light-Overload Use (ILD)	41 A
Output Current, Heavy-Duty Use (IHD)	35 A
Output Power, Normal Use (Pn)	11 kW
Output Power, Light-Overload Use (PLD)	11 kW
Output Power, Heavy-Duty Use (PHD)	7.5 kW
Apparent Power Output	18 kV·A
Efficiency Level	IE2
Standby Loss	31 W
Temperature Rating	Maximum 40 °C
Output Current, Heavy-Duty Use (UL)	35 A
Output Current, Light-Overload Use (UL)	41 A
Output Power, Heavy-Duty Use (UL)	10 Hp
Output Power, Light-Overload Use (UL)	15 Hp
REACH Date	20250905
REACH Declaration	REACH SVHC-250 declaration
REACH Information	True - contains substances > 0.1 mass percentage
RoHS Date	20240508
RoHS Declaration	EU Declaration of Conformity for ACS880-01, ACS880-04/-04F, ACS880-11/-31, ACS880-14/-34, ACS880-M04
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP	fcbdffac-2627-4666-9149-f2307acecd9a Finland
WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC	39122001
