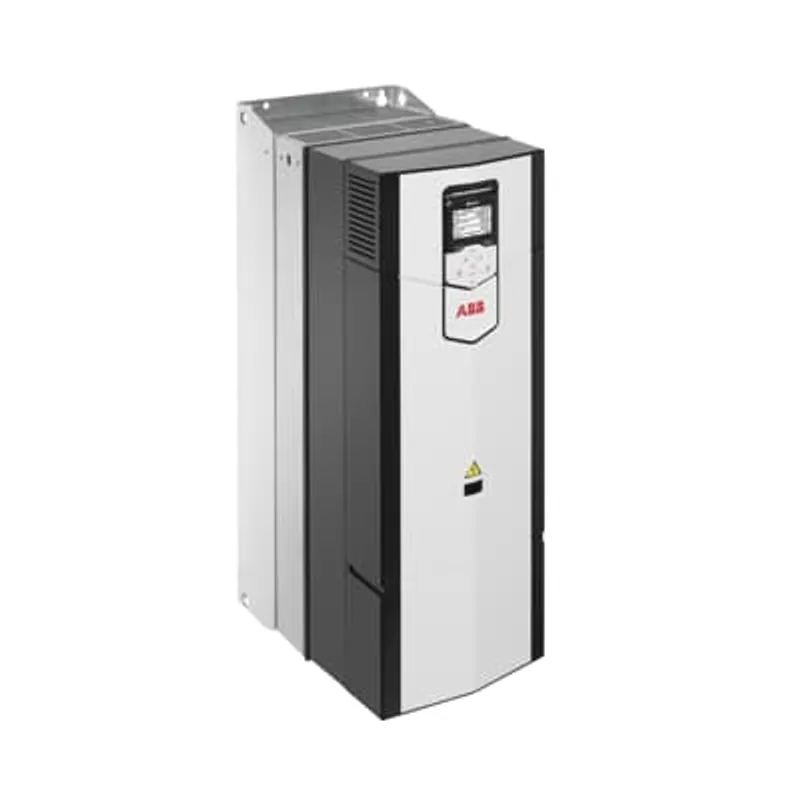

ABB ACS880-31-032A-3
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Wall-mounted low harmonic single drive |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 52 kg |
Shipping & availability
When can ACS880-31-032A-3 be shipped?
ACS880-31-032A-3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACS880-31-032A-3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACS880-31-032A-3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS880-31-032A-3, subject to availability and destination.
The ACS880-31 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans. The compact ACS880-31 ultra-low harmonic drive produces exceptionally low harmonic content and exceeds the requirements set by low harmonic recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction.
Specifications
Specifications
| Customs Tariff Number | 85044086 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS880-31-032A-3 PN: 15 kW, IN: 32 A |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 52 kg, 114.640 lb |
| Product Net Depth / Length | 382 mm, 15.039 in |
| Product Net Height | 771 mm, 30.354 in |
| Product Net Width | 252 mm, 9.921 in |
| Package Level 1 Depth / Length | 992 mm, 39.055 in |
| Package Level 1 Height | 598 mm, 23.543 in |
| Package Level 1 Width | 400.0 mm, 15.748 in |
| Package Level 1 Units | 1 case |
| Number of Phases | 3-phase |
| Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 |
| Altitude | 4000 m |
| Operating Humidity (RHamb) | 5 ... 95 |
| Power Factor | 1.0 |
| Sound dB (A) | 71 dB(A) |
| Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g |
| Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R6 |
| Input Voltage (Uin) | 380 ... 415 V |
| Mounting Type | Wall-mounted |
| Communication Protocol | CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 6, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes | Control unit, PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 6 / 2 |
| Output Current, Normal Use (In) | 32 A |
| Output Current, Light-Overload Use (ILD) | 30 A |
| Output Current, Heavy-Duty Use (IHD) | 25 A |
| Output Power, Normal Use (Pn) | 15 kW |
| Output Power, Light-Overload Use (PLD) | 15 kW |
| Output Power, Heavy-Duty Use (PHD) | 11 kW |
| Power Consumption (@Pcons) | 659 W |
| Apparent Power Output | 22 kV·A |
| Efficiency Level | IE2 |
| Standby Loss | 49 W |
| Temperature Rating | Maximum +55 °C, Minimum -15 °C |
| Ecodesign Exemption | Energy efficiency data is not provided for the drive. The low-harmonic drives are exempt from the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.d). |
| Declaration of Conformity - CE | EU Declaration of Conformity for ACS880-01, ACS880-04/-04F, ACS880-11/-31, ACS880-14/-34, ACS880-M04 |
| REACH Date | 20250905 |
| REACH Declaration | REACH SVHC-250 declaration |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20240508 |
| RoHS Declaration | EU Declaration of Conformity for ACS880-01, ACS880-04/-04F, ACS880-11/-31, ACS880-14/-34, ACS880-M04 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | fcdc24ef-6177-4a20-9ff6-4fd916600fd0 Finland |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| ETIM 9 | EC001857 - Frequency converter =< 1 kV |
| ETIM 10 | EC001857 - Frequency converter =< 1 kV |
| UNSPSC | 39122001 |
