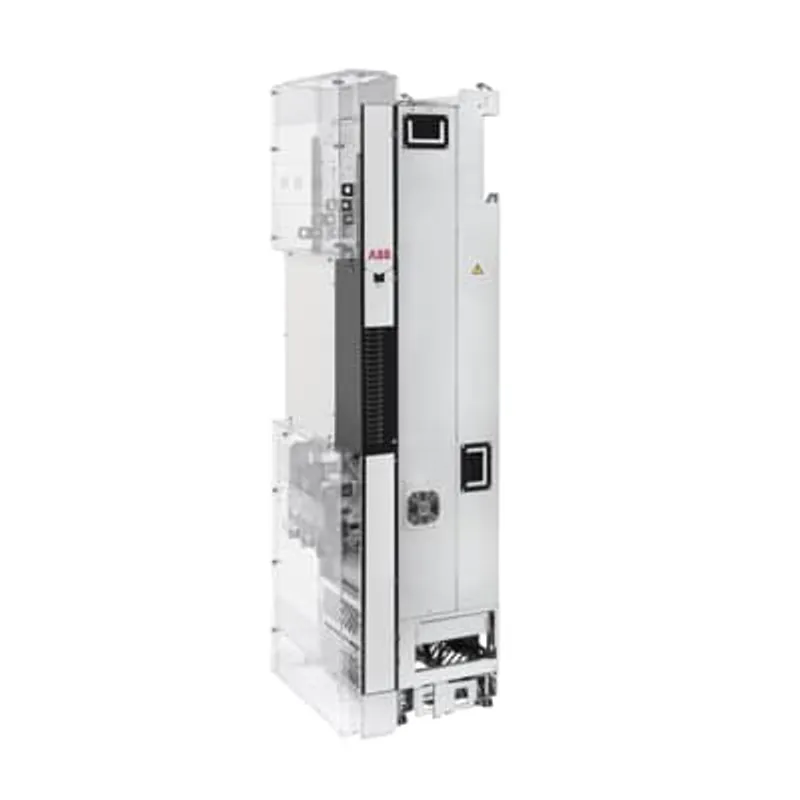

ABB ACS880-14-330A-7
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Regenerative single drive module |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 365 kg |
Shipping & availability
When can ACS880-14-330A-7 be shipped?
ACS880-14-330A-7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACS880-14-330A-7 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACS880-14-330A-7 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS880-14-330A-7, subject to availability and destination.
The ACS880-14 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans. The compact ACS880-14 regenerative drive module captures and utilizes braking energy which results in cost savings for the user. With mechanical or resistor braking energy is wasted as heat and additional cooling is often required, whereas regenerative drive operation offers significant savings in energy consumption and cooling. The drive reaches a unity power factor, meaning that electrical energy is used to its full potential. Equipped with an active supply unit and integrated low harmonic line filter, the regenerative drive produces exceptionally low harmonic content. These modules are specifically designed for machine builders and systems integrators. Bookshelf and flat variants can easily be pushed inside the cabinet using a pedestal on wheels.
Specifications
Specifications
| Customs Tariff Number | 85044086 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS880-14-330A-7 PN: 315 kW, IN: 330 A |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 365 kg, 805 lb |
| Product Net Depth / Length | 512 mm, 20.157 in |
| Product Net Height | 1741 mm, 68.543 in |
| Product Net Width | 713 mm, 28.071 in |
| Package Level 1 Depth / Length | 1077.0 mm, 42.402 in |
| Package Level 1 Height | 2050.0 mm, 80.709 in |
| Package Level 1 Width | 650.0 mm, 25.591 in |
| Package Level 1 Units | 1 case |
| Number of Phases | 3-phase |
| Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type |
| Altitude | 4000 m |
| Operating Humidity (RHamb) | 5 ... 95 |
| Power Factor | 1.0 |
| Sound dB (A) | 75 dB(A) |
| Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g |
| Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R11 |
| Input Voltage (Uin) | 525 ... 690 V |
| Mounting Type | Module |
| Communication Protocol | CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 6, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes | Control unit, PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 6 / 2 |
| Output Current, Normal Use (In) | 330 A |
| Output Current, Light-Overload Use (ILD) | 320 A |
| Output Current, Heavy-Duty Use (IHD) | 271 A |
| Output Power, Normal Use (Pn) | 315 kW |
| Output Power, Light-Overload Use (PLD) | 315 kW |
| Output Power, Heavy-Duty Use (PHD) | 250 kW |
| Power Consumption (@Pcons) | 5485 W |
| Apparent Power Output | 394 kV·A |
| Efficiency Level | IE2 |
| Standby Loss | 214 W |
| Temperature Rating | Maximum +55 °C, Minimum -15 °C |
| Ecodesign Exemption | Energy efficiency data is not provided for the drive. The regenerative drives are exempt from the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.c). |
| Output Current, Heavy-Duty Use (UL) | 242 A |
| Output Current, Light-Overload Use (UL) | 289 A |
| Output Power, Heavy-Duty Use (UL) | 250 Hp |
| Output Power, Light-Overload Use (UL) | 300 Hp |
| Declaration of Conformity - CE | EU Declaration of Conformity for ACS880-01, ACS880-04/-04F, ACS880-11/-31, ACS880-14/-34, ACS880-M04 |
| REACH Date | 20250905 |
| REACH Declaration | REACH SVHC-250 declaration |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20240508 |
| RoHS Declaration | EU Declaration of Conformity for ACS880-01, ACS880-04/-04F, ACS880-11/-31, ACS880-14/-34, ACS880-M04 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 7f3c52d9-0321-456d-a5b5-7fcf00de29a4 Finland |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| ETIM 9 | EC001857 - Frequency converter =< 1 kV |
| ETIM 10 | EC001857 - Frequency converter =< 1 kV |
| UNSPSC | 39122001 |
