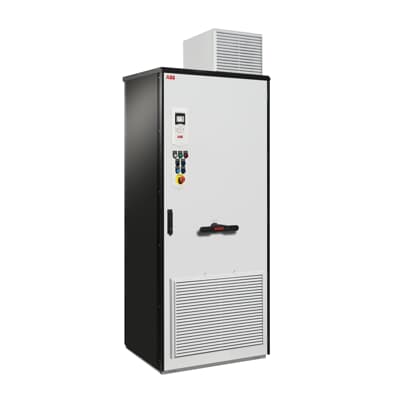

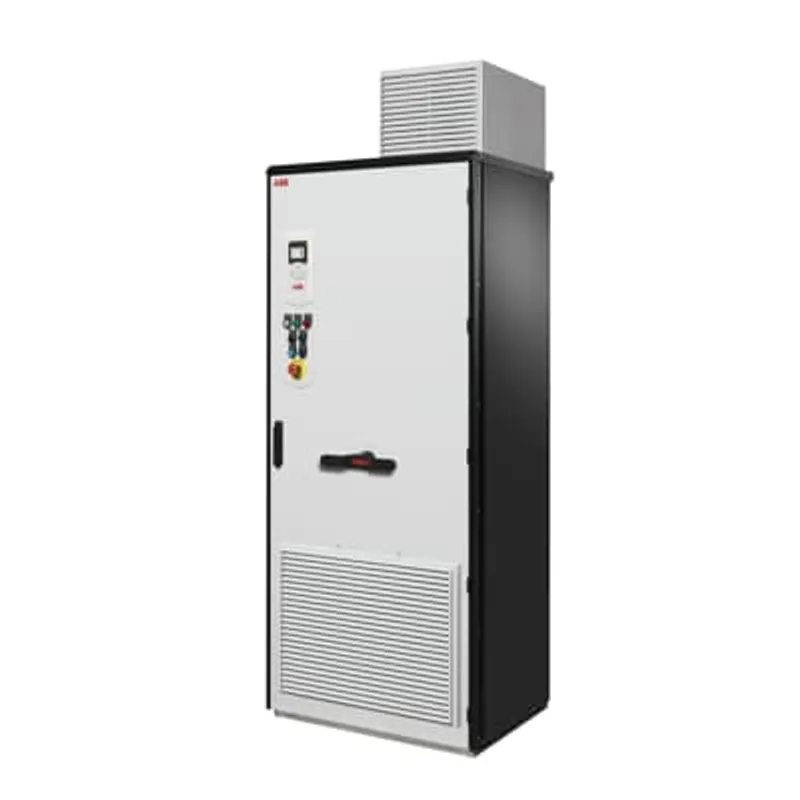

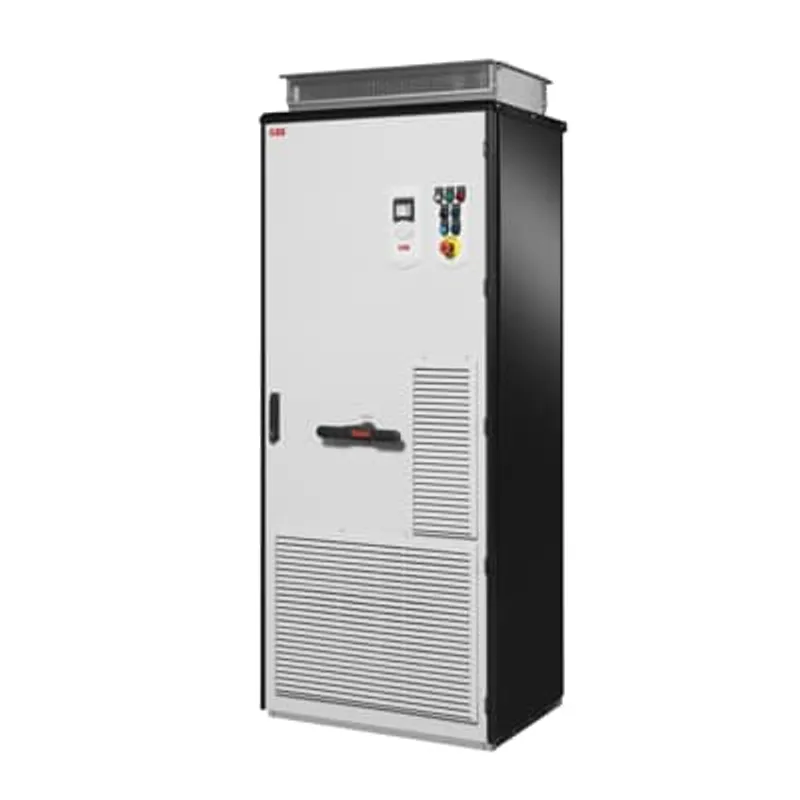

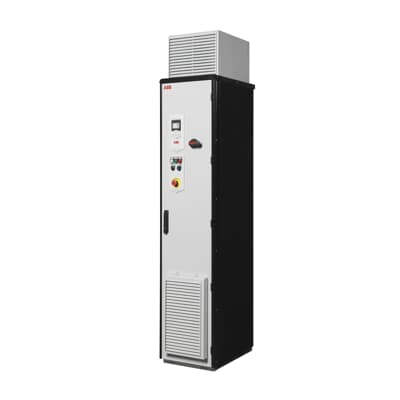

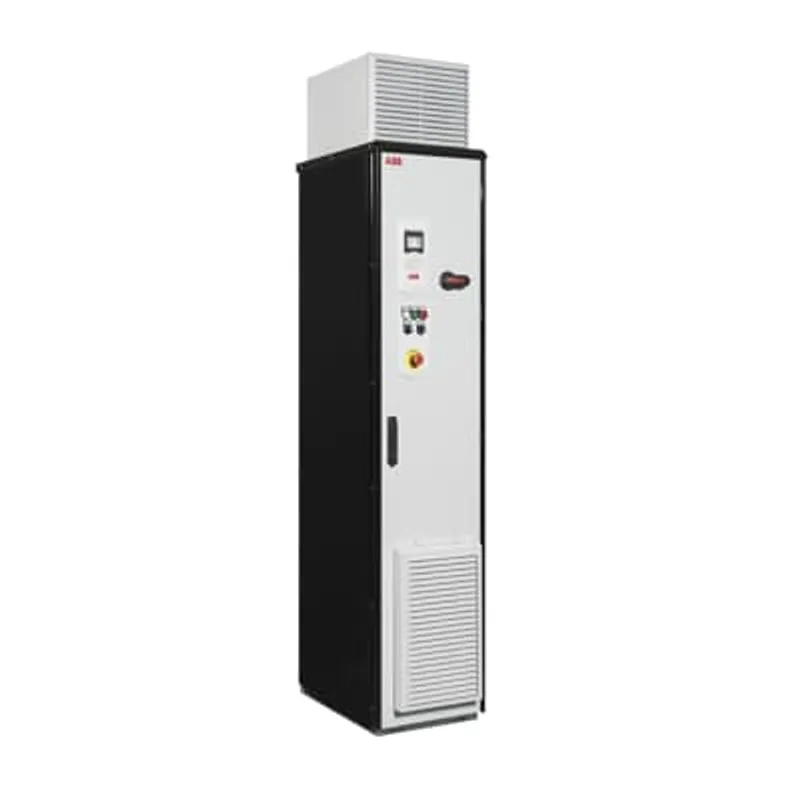

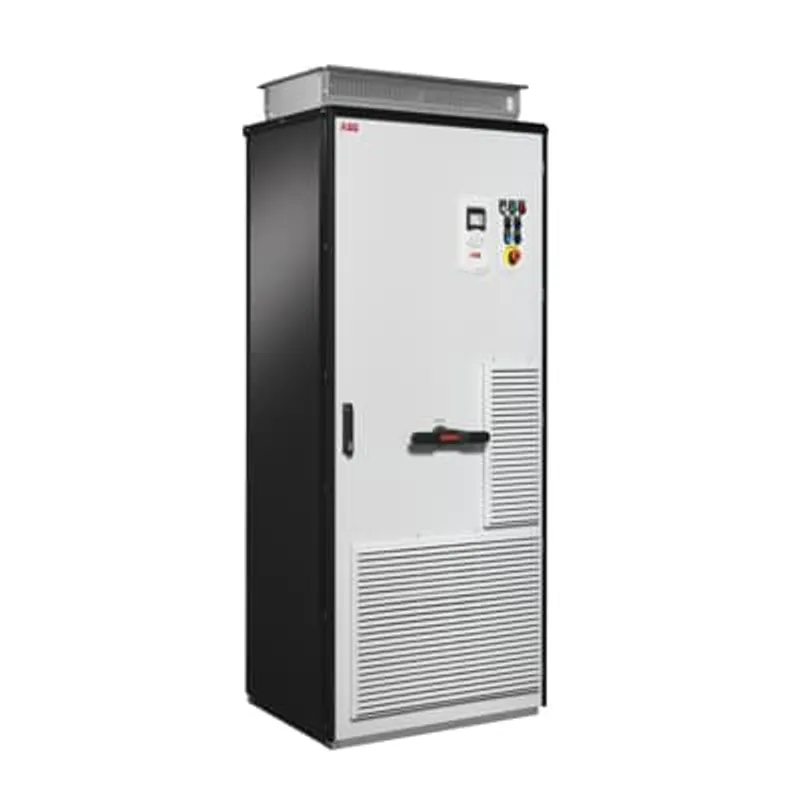

ABB ACS880-07-0302A-5
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cabinet-built single drive |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 375 kg |
Shipping & availability
When can ACS880-07-0302A-5 be shipped?
ACS880-07-0302A-5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACS880-07-0302A-5 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACS880-07-0302A-5 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS880-07-0302A-5, subject to availability and destination.
The cabinet-built single drives are built to order, meeting your needs regardless of the technical challenges. The drive configuration includes a rectifier, DC link, inverter, fuses, line choke and a main switch, all built into a compact cabinet for easy assembly and commissioning. The ACS880-07 offers a wide ariety of standardized configurations for different application requirements, from line contactors, to preventing unexpected motor starts. If the application requires more, ABB’s Order-Based Engineering services can add special features to the standard product, such as an additional cabinet for customer-specific devices. Drives up to frame size R11 are based on a compact single module including rectifier and inverter. Larger drives consist of separate rectifier and inverter modules, providing redundancy with parallel connected units. If one module needs to be disconnected, the drive can continue running at reduced power.The robust design and enclosures up to IP54 make the ACS880-07 suitable for even very harsh environments.
Specifications
Specifications
| Customs Tariff Number | 85044086 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS880-07-0302A-5 PN: 200 kW, IN: 302 A |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 375 kg, 827 lb |
| Product Net Depth / Length | 698 mm, 27.48 in |
| Product Net Height | 2145 mm, 84.45 in |
| Product Net Width | 830 mm, 32.68 in |
| Package Level 1 Depth / Length | 1100 mm, 43.31 in |
| Package Level 1 Height | 2385 mm, 93.90 in |
| Package Level 1 Width | 1144 mm, 45.04 in |
| Number of Phases | 3-phase |
| Degree of Protection | IP22 |
| Enclosure Type NEMA | Type1 |
| Altitude | 1000 m |
| Operating Humidity (RHamb) | 5 ... 95 |
| Power Factor | 0.98 |
| Sound dB (A) | 68 dB(A) |
| Multiple Battery Information | Lithium Coin, CR2032, 2pcs, 3V, 220mAh, 6g |
| Frequency (f) | 48 ... 63 Hz |
| Frame Size | R9 |
| Input Voltage (Uin) | 380 ... 500 V |
| Communication Protocol | CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP |
| Number of Hardware Interfaces | Industrial Ethernet 0, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes | Control unit, PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 7 / 5 |
| Output Current, Normal Use (In) | 302 A |
| Output Current, Light-Overload Use (ILD) | 287 A |
| Output Current, Heavy-Duty Use (IHD) | 260 A |
| Output Power, Normal Use (Pn) | 200 kW |
| Output Power, Light-Overload Use (PLD) | 200 kW |
| Output Power, Heavy-Duty Use (PHD) | 160 kW |
| Apparent Power Output | 325 kV·A |
| Temperature Rating | Maximum 40 °C, Minimum 0 °C |
| Output Current, Heavy-Duty Use (UL) | 260 A |
| Output Current, Light-Overload Use (UL) | 302 A |
| Output Power, Heavy-Duty Use (UL) | 200 Hp |
| Output Power, Light-Overload Use (UL) | 250 Hp |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
