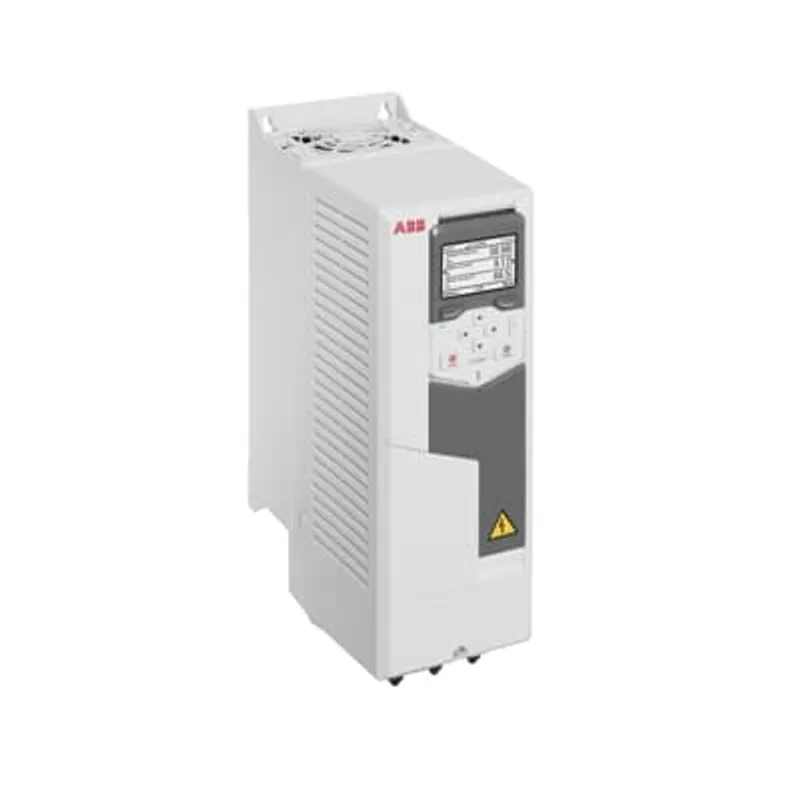

ABB ACS580-01-09A5-4
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Wall-mounted drive |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 4.6 kg |
Shipping & availability
When can ACS580-01-09A5-4 be shipped?
ACS580-01-09A5-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACS580-01-09A5-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACS580-01-09A5-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS580-01-09A5-4, subject to availability and destination.
The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Specifications
Specifications
| Customs Tariff Number | 85044099 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS580-01-09A5-4 PN: 4kW, IN: 9.4A |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 4.6 kg |
| Product Net Depth / Length | 223 mm |
| Product Net Height | 303 mm |
| Product Net Width | 125 mm |
| Package Level 1 Units | 0 carton |
| Number of Phases | 3-phase |
| Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 |
| Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R1 |
| Input Voltage (Uin) | 380 … 480 V |
| Mounting Type | Wall-mounted_NO UNIT$ |
| Output Current, Normal Use (In) | 9.4 A |
| Output Current, Light-Overload Use (ILD) | 8.9 A |
| Output Current, Heavy-Duty Use (IHD) | 7.2 A |
| Output Power, Normal Use (Pn) | 4 kW |
| Output Power, Light-Overload Use (PLD) | 4 kW |
| Output Power, Heavy-Duty Use (PHD) | 3 kW |
| Efficiency Level | IE2 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| UNSPSC | 39122001 |
