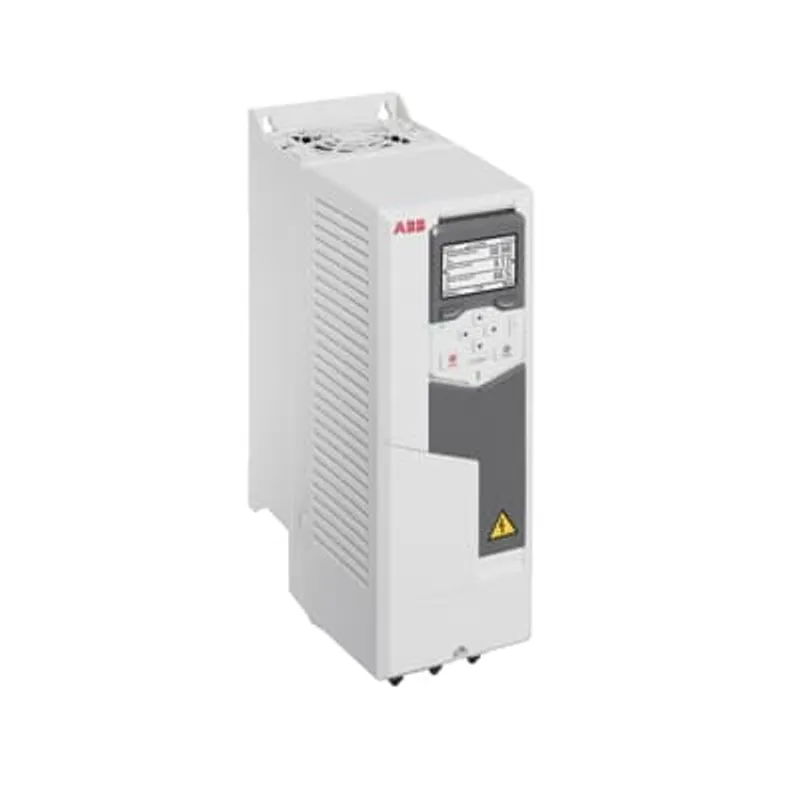

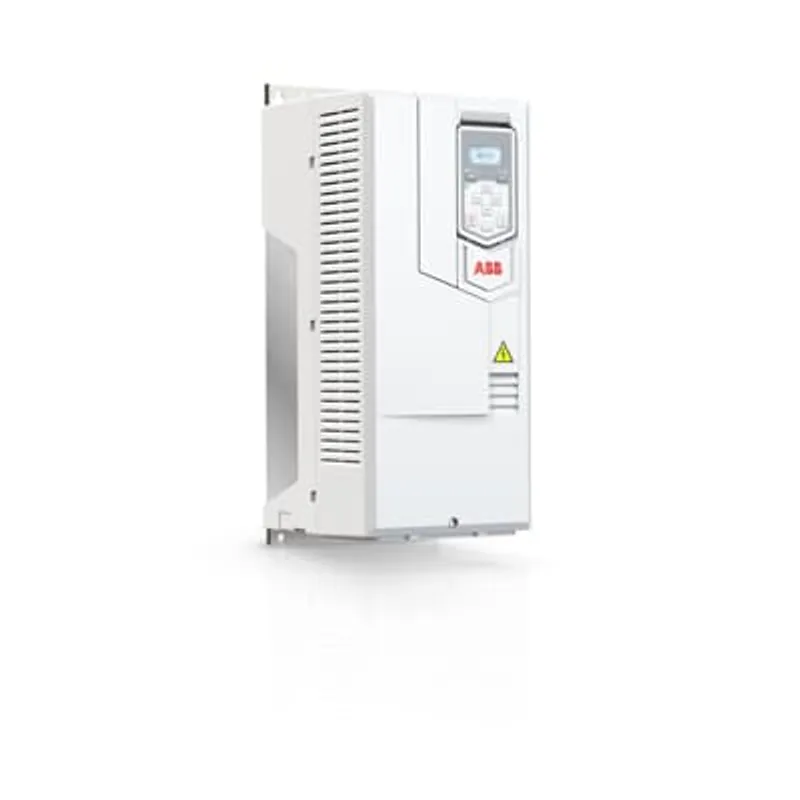

ABB ACS560-01-246A-4
MPN: ACS560-01-246A-4 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Wall-mounted drive |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 69 kg |
Shipping & availability
When can ACS560-01-246A-4 be shipped?
ACS560-01-246A-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACS560-01-246A-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACS560-01-246A-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS560-01-246A-4, subject to availability and destination.
ACS560-01-246A-4
Specifications
Specifications
| Customs Tariff Number | 85044084 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS560-01-246A-4 |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 69 kg, 152.119 lb |
| Product Net Depth / Length | 394 mm |
| Product Net Height | 943 mm |
| Product Net Width | 300 mm |
| Package Level 1 Depth / Length | 393 mm, 15.472 in |
| Package Level 1 Height | 677 mm, 26.654 in |
| Package Level 1 Width | 300 mm, 11.811 in |
| Number of Phases | 3-phase |
| Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type |
| Frequency (f) | 47 ... 63 Hz |
| Frame Size | R8 |
| Input Voltage (Uin) | 380 ... 480 V |
| Mounting Type | Wall-mounted |
| Output Current, Normal Use (In) | 246 A |
| Output Current, Light-Overload Use (ILD) | 234 A |
| Output Current, Heavy-Duty Use (IHD) | 206 A |
| Output Power, Normal Use (Pn) | 132 kW |
| Output Power, Light-Overload Use (PLD) | 132 kW |
| Output Power, Heavy-Duty Use (PHD) | 110 kW |
| Apparent Power Output | 170 kV·A |
| Efficiency Level | IE2 |
| Standby Loss | 47 W |
| Temperature Rating | Maximum 40 °C |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| UNSPSC | 39122001 |
