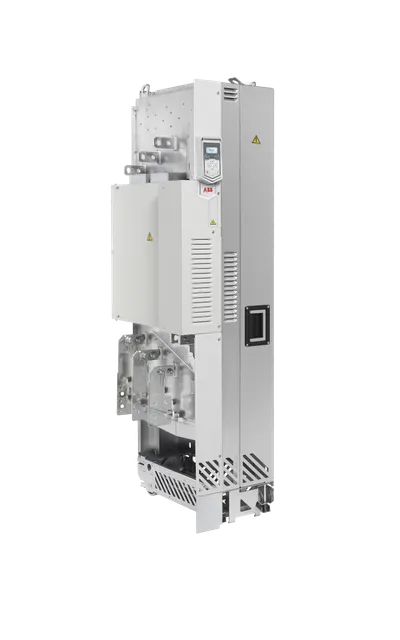

ABB ACS530-04-585A-4+N7569+B051

Name: ABB ACS530-04-585A-4+N7569+B051
Brand: ABB
SKU: ACS530-04-585A-4+N7569+B051

MPN: ACS530-04-585A-4+N7569+B051 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ACS580
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	161 kg

Shipping & availability

When can ACS530-04-585A-4+N7569+B051 be shipped?

ACS530-04-585A-4+N7569+B051 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ACS530-04-585A-4+N7569+B051 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ACS530-04-585A-4+N7569+B051 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS530-04-585A-4+N7569+B051, subject to availability and destination.

The ACS530-04 has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS530 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS530-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.

Specifications

Ordering

Customs Tariff Number	85044087
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS530-04-585A-4+N7569+B051 PN:315kW, IN:585A
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	161 kg kg
Product Net Depth / Length	529 mm mm
Product Net Height	1462 mm mm
Product Net Width	350 mm mm
Package Level 1 Depth / Length	2050 mm mm
Package Level 1 Height	500 mm mm
Package Level 1 Width	645 mm mm
Package Level 1 Units	1 carton

Technical

Number of Phases	3-phase
Degree of Protection	IP00
Enclosure Type NEMA	Open Type
Frequency (f)	47.5 ... 63 Hz Hz
Frame Size	R10
Input Voltage (Uin)	380 ... 480 V V
Mounting Type	Module
Output Current, Normal Use (In)	585 A A
Output Current, Light-Overload Use (ILD)	575 A A
Output Power, Normal Use (Pn)	315 kW kW
Output Power, Light-Overload Use (PLD)	315 kW kW
Efficiency Level	IE2
