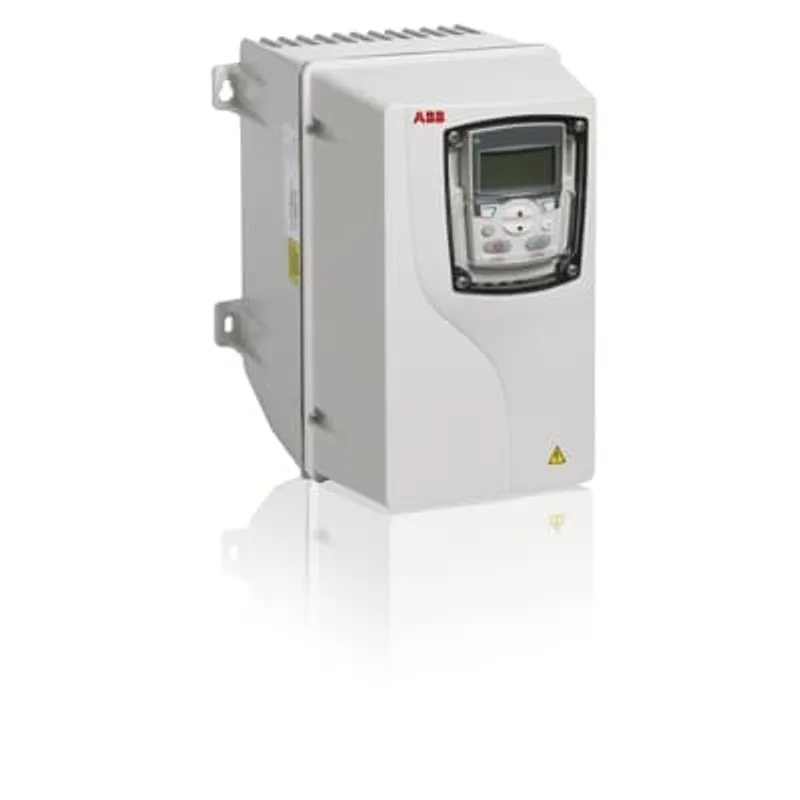

ABB ACS355-03E-07A5-2+B063
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Machinery Drive |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 8.4 kg |
Shipping & availability
When can ACS355-03E-07A5-2+B063 be shipped?
ACS355-03E-07A5-2+B063 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACS355-03E-07A5-2+B063 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACS355-03E-07A5-2+B063 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS355-03E-07A5-2+B063, subject to availability and destination.
The ACS355 drives are designed to meet the requirements of an extensive range of machinery applications in food and beverage, material handling, lifting, textile, printing, rubber and plastics, and woodworking applications. The drive is user-friendly, yet it provides a wide range of built-in technology such as the safe torque off functionality and sequence programming, reducing the need for additional control electronics. The product offers options and diverse functionality to cater to the needs set for speed and torque control of AC induction and permanent magnet motors.
Specifications
Specifications
| Customs Tariff Number | 85044085 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS355-03E-07A5-2+B063 Pn 1,5, I2n 7,5A IP66. |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 8.4 kg |
| Product Net Depth / Length | 281 mm |
| Product Net Height | 346 mm |
| Product Net Width | 195 mm |
| Package Level 1 Depth / Length | 582 mm |
| Package Level 1 Height | 330 mm |
| Package Level 1 Width | 254 mm |
| Package Level 1 Units | 1 carton |
| Number of Phases | 3-phase |
| Degree of Protection | IP66 |
| Enclosure Type NEMA | Type4X |
| Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g |
| Frequency (f) | 50/60 Hz |
| Frame Size | R1 |
| Input Voltage (Uin) | 200 … 240 V |
| Mounting Type | Module for cabinet building |
| Communication Protocol | MODBUS, LON, DeviceNet, PROFIBUS, CAN, EtherNet/IP, PROFINET IO, TCP/IP, Other Bus Systems |
| Number of Hardware Interfaces | Industrial Ethernet 0, PROFINET 0, RS-232 1, RS-422 0, RS-485 1, Serial TTY 0, USB 0, Parallel 0, Other 1 |
| Includes | Without control unit, Without optical interface, With PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 1 |
| Number of Digital In/Outputs | 5/1 |
| Output Current, Normal Use (In) | 7.5 A |
| Output Power, Normal Use (Pn) | 1.5 kW |
| Power Consumption (@Pcons) | 81 W |
| Declaration of Conformity - CE | EU Declaration of Conformity for ACS355 and ACS150 |
| REACH Date | 20250905 |
| REACH Declaration | REACH SVHC-250 declaration |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20230306 |
| RoHS Declaration | ACS310 and ACS320 EU single DoC |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 52a3afee-d4f3-4d66-919c-ffe74ada1ecf Finland |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 9 | EC001857 - Frequency converter =< 1 kV |
| ETIM 10 | EC001857 - Frequency converter =< 1 kV |
| UNSPSC | 39122001 |
