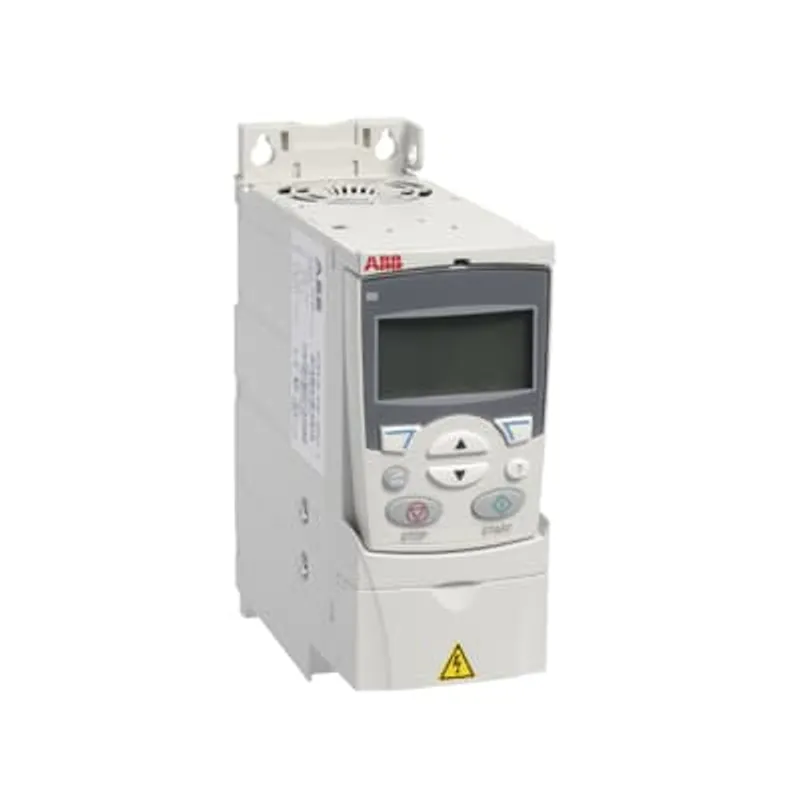

ABB ACS310-01U-02A4-2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Drive module for pumps and fans |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2.6 kg |
Shipping & availability
When can ACS310-01U-02A4-2 be shipped?
ACS310-01U-02A4-2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACS310-01U-02A4-2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACS310-01U-02A4-2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS310-01U-02A4-2, subject to availability and destination.
The ACS310 drives are designed for variable torque applications such as booster pumps and supply and return fans. The drive includes a powerful and beneficial set of features designed for pump and fan applications. These features include built-in PID controllers and pump and fan control (PFC) that varies the drive’s performance in response to changes in pressure, flow or other external data.
Specifications
Specifications
| Customs Tariff Number | 85044084 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS310-01U-02A4-2, 200 VAC, Pn 0.5HP, I2n 2.4A, IP20 |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 2.6 lb |
| Product Net Depth / Length | 6.34 in |
| Product Net Height | 9.41 in |
| Product Net Width | 2.76 in |
| Number of Phases | 1-phase |
| Degree of Protection | IP20 |
| Frequency (f) | 50/60 Hz |
| Frame Size | R0 |
| Input Voltage (Uin) | 200 ... 240 V |
| Mounting Type | Wall-mounting |
| Output Current, Normal Use (In) | 2.4 A |
| Output Power, Normal Use (Pn) | 0.5 Hp |
| Ecodesign Exemption | Energy efficiency data is not provided for the 1~230 V drives. The drives with one phase input are not in the scope of the EU ecodesign requirements (Regulation EU/2019/1781). |
| SCIP | ec655904-52c0-4b46-941b-2b893a86cbf9 Finland |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | ETIM 7 |
| UNSPSC | 39122001 |
