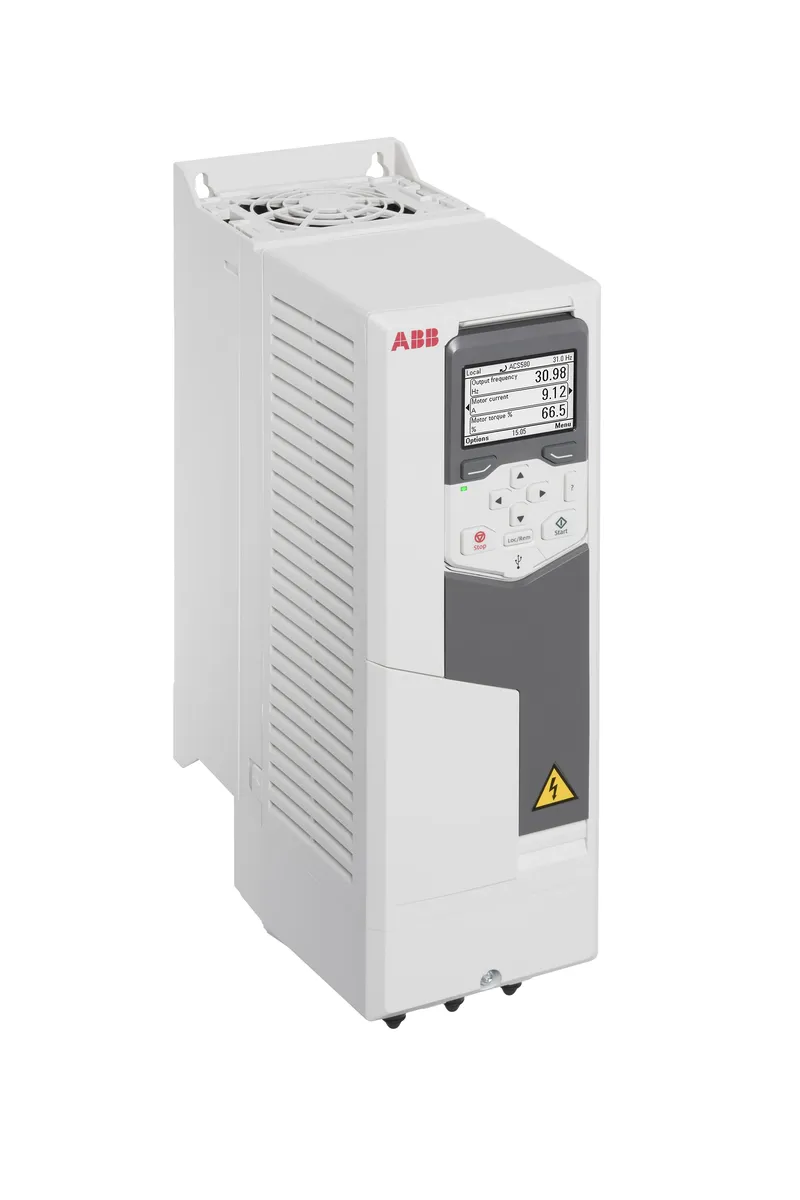

ABB ACQ580-3P-124A-4+C192+F289
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ACS580 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ACQ580-3P-124A-4+C192+F289 be shipped?
ACQ580-3P-124A-4+C192+F289 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACQ580-3P-124A-4+C192+F289 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACQ580-3P-124A-4+C192+F289 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACQ580-3P-124A-4+C192+F289, subject to availability and destination.
The ACQ580-3P ultra-low harmonic (ULH) irrigation drive package is an outdoor rated, UL (NEMA) Type 3R enclosed drive assembled to UL508A, designed to help your system comply with IEEE519. The ULH technology within this package produces the least amount of harmonic distortion to reduce stress on electrical equipment. It provides unity power factor with a 3% or less THiD. As there is no need for external filters, multi-pulse arrangements or special transformers, the simple installation offers significant savings in space, time and cost. This robust package is also Service Entrance rated for three phase four wire systems and has padlockable disconnect and enclosure doors. It comes equipped with built-in circuit breakers, reducing downtime and the need to carry fuses. It also includes a thermostatically controlled heater to protect against condensation, a surge suppressor to defend against transient lightning strikes and a totally enclosed control area to maintain a clean environment for the drive and low voltage control components. It is available in power ranges from 40-150 HP at 460V 3-phase.
Specifications
Ordering
| Customs Tariff Number | 85044080 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACQ580-3P-124A-4+C192+F289, PLD 100 HP, I2LD 124 A A |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 640 lb |
| Product Net Depth / Length | 28.9 in |
| Product Net Height | 60.3 in |
| Product Net Width | 40.5 in |
Technical
| Number of Phases | 3-phase |
| Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 |
| Frequency (f) | 50/60 Hz Hz |
| Frame Size | R8 |
| Input Voltage (Uin) | 440 … 480 V V |
Technical UL
| Output Current, Heavy-Duty Use (UL) | 96 A A |
| Output Current, Light-Overload Use (UL) | 124 A A |
| Output Power, Heavy-Duty Use (UL) | 75 Hp |
| Output Power, Light-Overload Use (UL) | 100 Hp |
External Classifications and Standards
| UNSPSC | 39121007 |
